Public and Private IP Addresses - Internet Protocols

Scenario

As a cloud support engineer at AWS, I received a support ticket from Jess, a cloud admin at a Fortune 500 company. Her email stated:

Hello, Cloud Support!

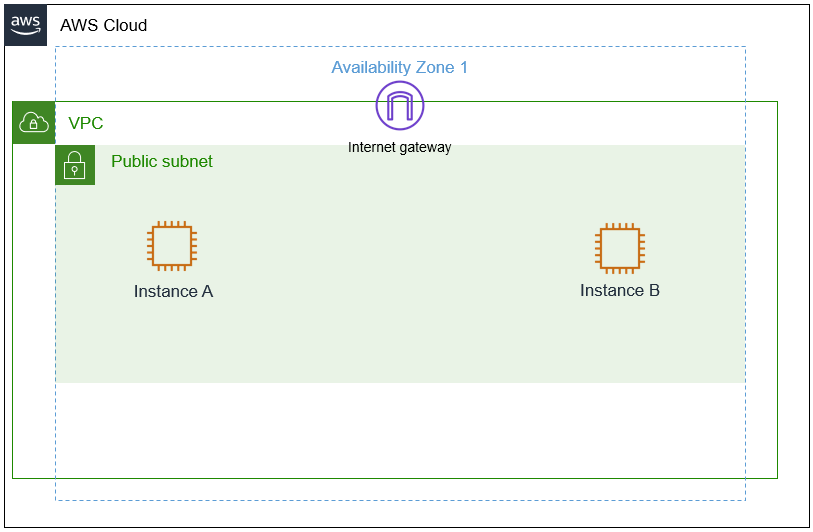

We currently have one virtual private cloud (VPC) with a CIDR range of 10.0.0.0/16. In this VPC, we have two Amazon Elastic Compute Cloud (Amazon EC2) instances: instance A and instance B. Even though both are in the same subnet and have the same configurations with AWS resources, instance A cannot reach the internet, and instance B can reach the internet. I think it has something to do with the EC2 instances, but I'm not sure. I also had a question about using a public range of IP address such as 12.0.0.0/16 for a VPC that I would like to launch. Would that cause any issues? Attached is our architecture for reference.

Thanks!
Jess
Cloud Admin

Task 1: Investigating the Customer's Environment

Before diving into the practical aspects, I recalled my knowledge of public and private IP addresses and CIDRs. When addressing task 1, I considered the differences between public and private IP addresses. For task 2, I focused on the importance of using private IP ranges rather than public IP ranges.

The AWS architecture had already been checked, and everything was routed and attached correctly. The customer's AWS architecture seemed sound because one of their instances worked properly. Jess suspected that the instance configuration might be the issue.

When troubleshooting networking issues in AWS, I applied a method of starting from the bottom and working my way up through the layers, similar to the OSI model approach. At the very bottom of this architecture is the EC2 instance. I kept in mind the relationships between the OSI model and AWS infrastructure:

Step 1: Accessing the AWS Console

I began by accessing the AWS Management Console. Once there, I searched for EC2 in the search bar at the top-left corner and selected EC2 from the list of services.

Step 2: Examining the EC2 Instances

In the EC2 dashboard, I navigated to the "Instances" section via the left navigation menu. This took me to the current EC2 instances, where I could see two instances running:

• Instance A (i-0055629a893a26ea2)
• Instance B (i-01bd6406b67bed60b)

Both were t3.micro instances and showed a "Running" state with 3/3 status checks passing.

Step 3: Analyzing Network Configurations

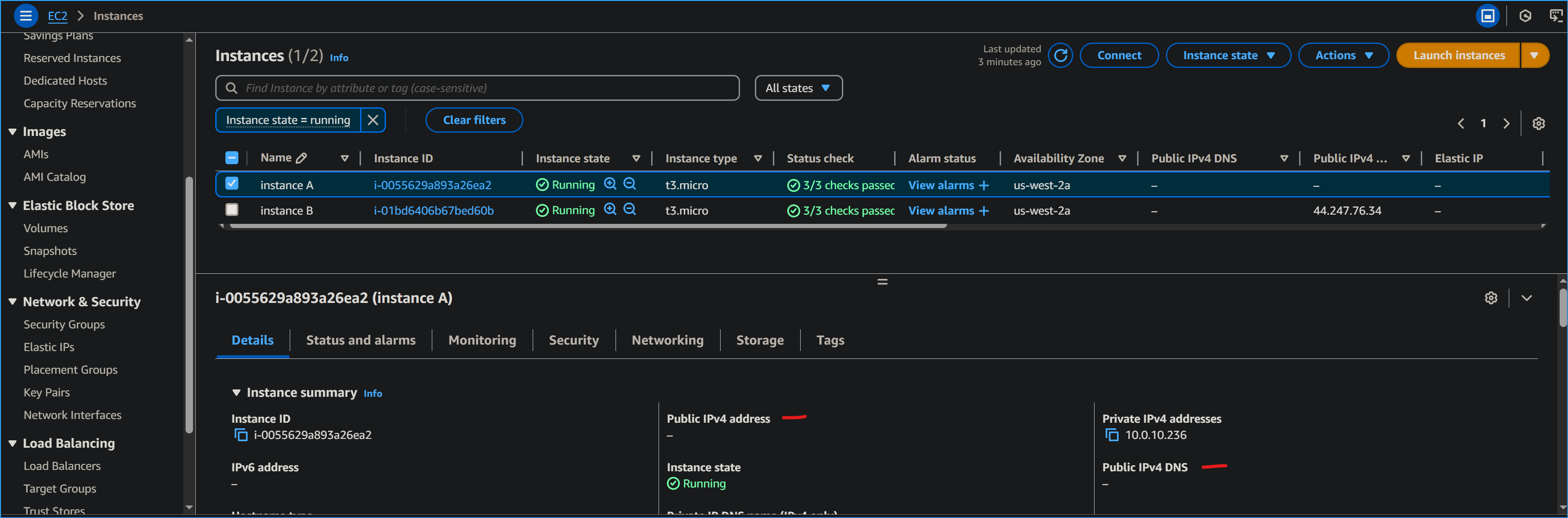

To understand the differences between the instances, I selected the checkbox next to instance A. At the bottom of the page, I chose the Networking tab and examined its networking configurations:

• Private IPv4 address: 10.0.10.236
• Public IPv4 address: None (initially)
• VPC: 10.0.0.0/16

I recorded these details in a text editor for future reference. Then I deselected instance A and selected instance B to examine its networking configurations:

• Private IPv4 address: Another private IP in the same subnet
• Public IPv4 address: 44.247.76.34
• VPC: 10.0.0.0/16

This was my first significant finding: Instance A lacked a public IP address, while instance B had one. This difference likely explained why instance A couldn't reach the internet while instance B could, despite being in the same subnet with identical AWS resource configurations.

Task 2: Connecting to the EC2 Instances and Testing Internet Connectivity

Step 1: Connecting to Instance B

Using the key pair provided in the environment (labsuser.pem), I connected to instance B via SSH using its public IP address:

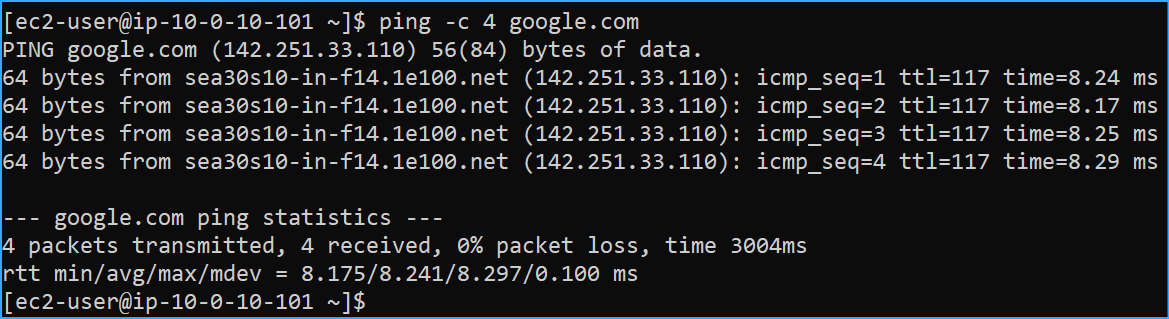

Once connected, I tested the internet connectivity:

The ping was successful, confirming that instance B could reach the internet as expected.

Step 2: Connecting to Instance A

Next, I connected to instance A. Initially, I tried to use the instance's private IP but ultimately used the connection options provided in the environment:

Once connected, I ran several diagnostic commands to thoroughly assess its network configuration:

This confirmed that instance A only had a private IP address (10.0.10.236) configured on its network interface, with no public IP visible at the OS level.

Next, I checked the routing table:

The routing configuration looked correct, with a default route through the VPC gateway (10.0.10.1).

I also examined the DNS configuration:

The DNS configuration also appeared correct, using the AWS-provided DNS server (10.0.0.2).

Finally, I tested internet connectivity from instance A:

This confirmed my hypothesis - instance A could not reach the internet, despite having proper internal network configuration.

Solution Implementation

Step 1: Checking the Current Public IP Assignment

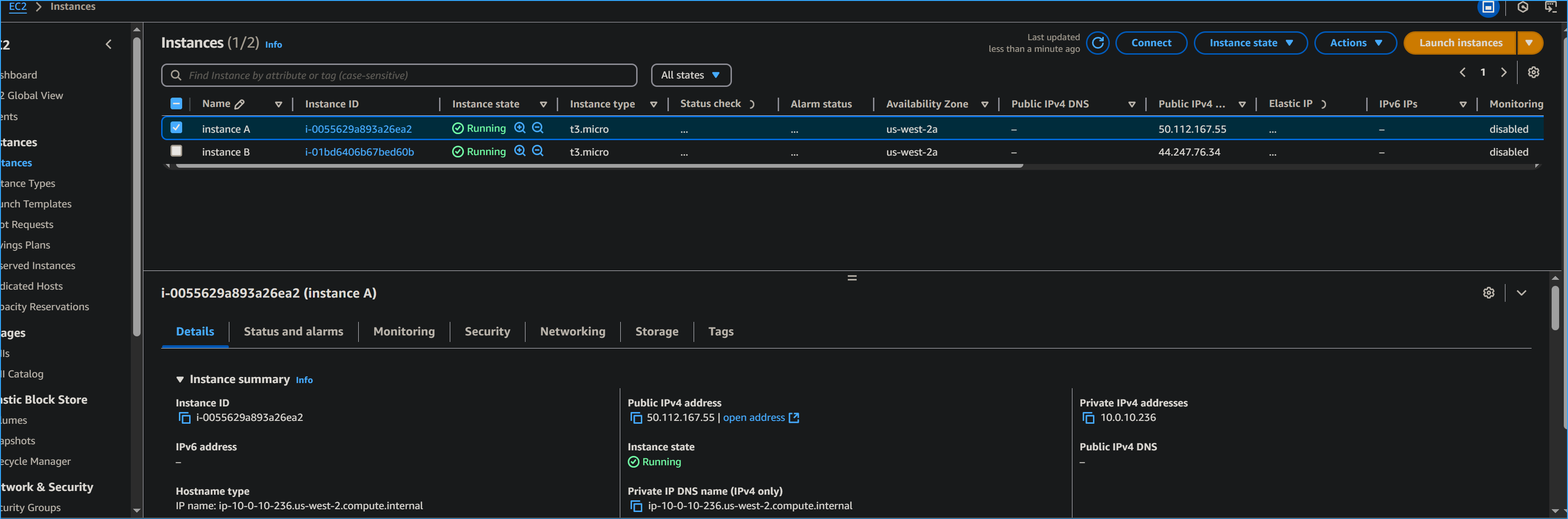

Looking at the EC2 console, I noticed that a public IP address (50.112.167.55) had actually been assigned to instance A, but it wasn't functioning properly for internet connectivity. This was puzzling because the ip addr show command didn't display this public IP on the instance.

Step 2: Understanding AWS IP Address Management

After further investigation, I realized that in AWS, public IP addresses aren't directly visible within the instance's networking configuration. Instead, AWS performs 1:1 NAT at the hypervisor level, translating traffic between the public IP and the instance's private IP without the instance being aware of it.

This explained why the ip addr show command didn't show the public IP despite it being assigned in the EC2 console.

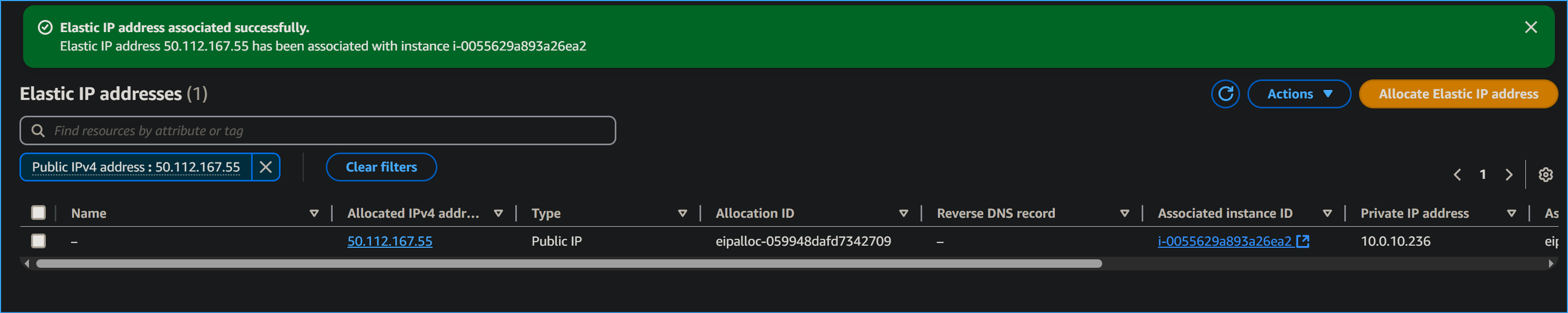

Step 3: Allocating and Associating an Elastic IP

To solve the connectivity issue, I allocated and associated an Elastic IP to instance A:

1. In the EC2 console, I navigated to the "Elastic IPs" section in the left navigation pane
2. Clicked the "Allocate Elastic IP address" button
3. Selected "Amazon's pool of IPv4 addresses" and clicked "Allocate"
4. After the IP was allocated, I selected it from the list
5. Clicked "Actions" and then "Associate Elastic IP address"
6. Selected instance A (i-0055629a893a26ea2) in the "Instance" dropdown
7. Clicked "Associate" to complete the process
8. Verified the association was successful in the Elastic IP dashboard

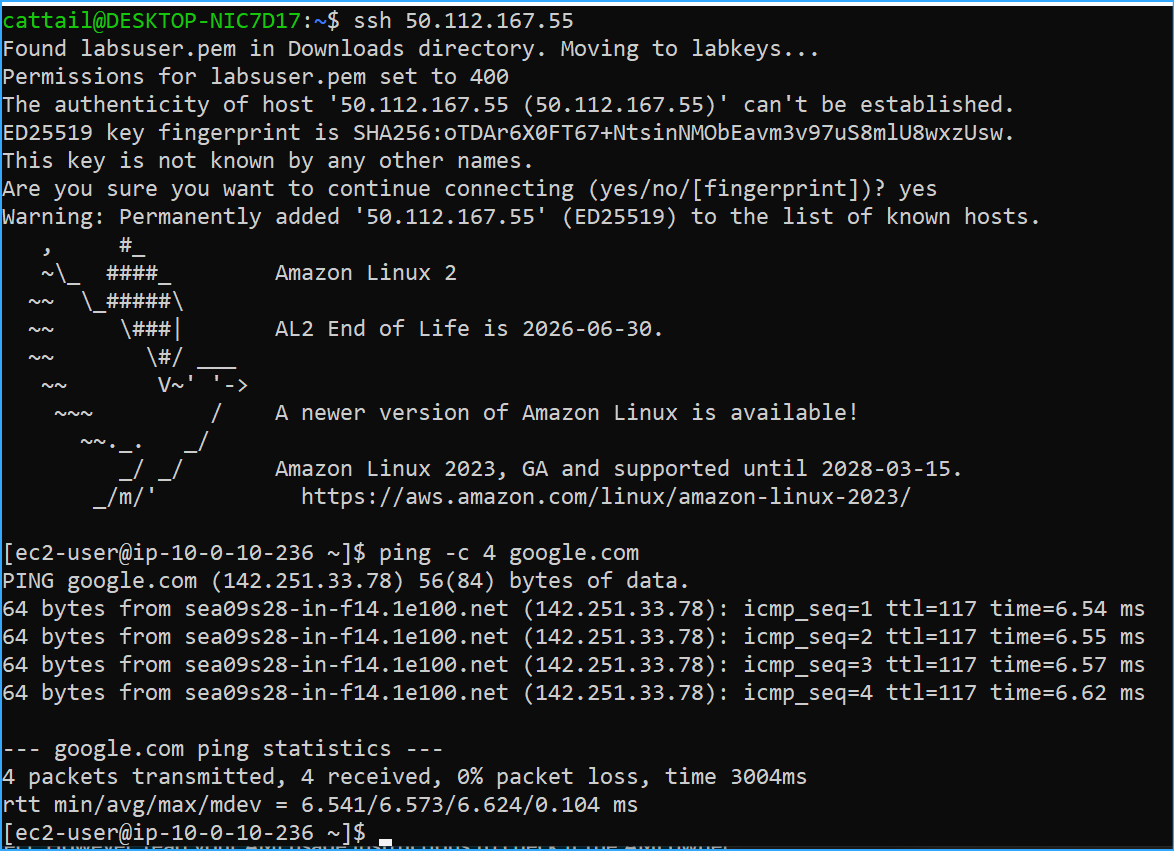

Step 4: Testing Internet Connectivity After Confirmation

After confirming the proper association of the Elastic IP, I tested internet connectivity again from instance A:

Success! Instance A could now reach the internet. This confirmed that the Elastic IP was working correctly, even though it wasn't visible in the instance's network configuration.

Addressing the Customer's Second Question: Public IP Ranges for VPCs

Regarding Jess's question about using a public IP range like 12.0.0.0/16 for a new VPC, I would advise against it for several important reasons:

1. AWS Requirements: AWS only allows private IP ranges for VPCs, specifically:
   • 10.0.0.0/8 (10.0.0.0 - 10.255.255.255)
   • 172.16.0.0/12 (172.16.0.0 - 172.31.255.255)
   • 192.168.0.0/16 (192.168.0.0 - 192.168.255.255)
2. Routing Conflicts: Using public IP ranges would cause routing conflicts when trying to connect to actual public services that might use those IPs. For example, if a server on the internet legitimately has the IP 12.0.0.5, and you have an internal resource with the same IP, your traffic would never reach the internet destination.
3. Security Implications: Using public IP ranges internally can create security vulnerabilities and lead to IP spoofing opportunities.
4. Best Practice: The Internet Engineering Task Force (IETF) in RFC 1918 specifically designated certain IP ranges for private networks to avoid these conflicts.
5. Practical Considerations: Even if AWS allowed public IP ranges for VPCs (which it doesn't), you would need to own those public IP ranges to use them legitimately, which requires registration with a Regional Internet Registry.
