Systems Manager

Task 1: Patching Linux Instances Using Default Baselines

In this task, I patched Linux EC2 instances using the default baselines available for the OS.

I learned that Patch Manager provides predefined patch baselines for each supported operating system. These can be used as currently configured (without customization), or custom patch baselines can be created for greater control over which patches are approved or rejected.

Here's what I did:

1. In the AWS Management Console, I searched for "Systems Manager" and selected it to access the Systems Manager console.
2. In the left navigation pane, under Node Management, I chose Fleet Manager.
3. I observed the pre-configured EC2 instances - three Linux instances and three Windows instances. These had a specific IAM role associated with them that allowed management via Systems Manager, which is why I could view them in Fleet Manager. This was part of the setup.
4. I selected the check box next to Linux-1, then chose the Node actions dropdown list and selected "View details."

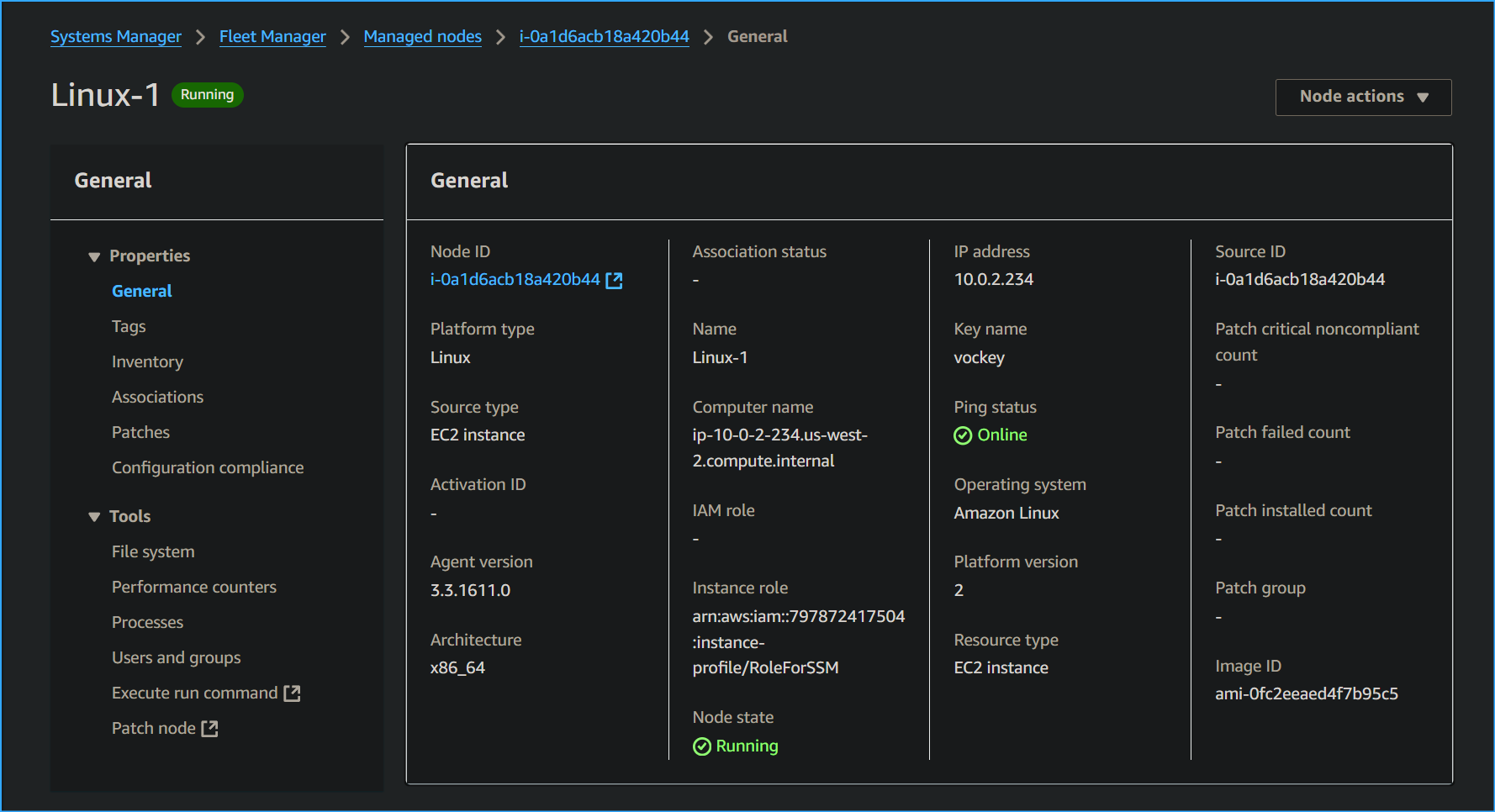

5. I viewed details about this specific instance, including Platform type, Node type, OS name, and the IAM role enabling Systems Manager management.
6. I navigated back to the Systems Manager homepage by clicking "AWS Systems Manager" at the top of the page.
7. In the left navigation pane, under Node Management, I selected Patch Manager.
8. I clicked "Start with an overview" (or proceeded to the next step if this option didn't appear).
9. I chose "Patch now" to patch the Linux instances with AWS-AmazonLinux2DefaultPatchBaseline.

Under Basic configuration, I set the following:

10. I clicked "Add" and then "Patch now."

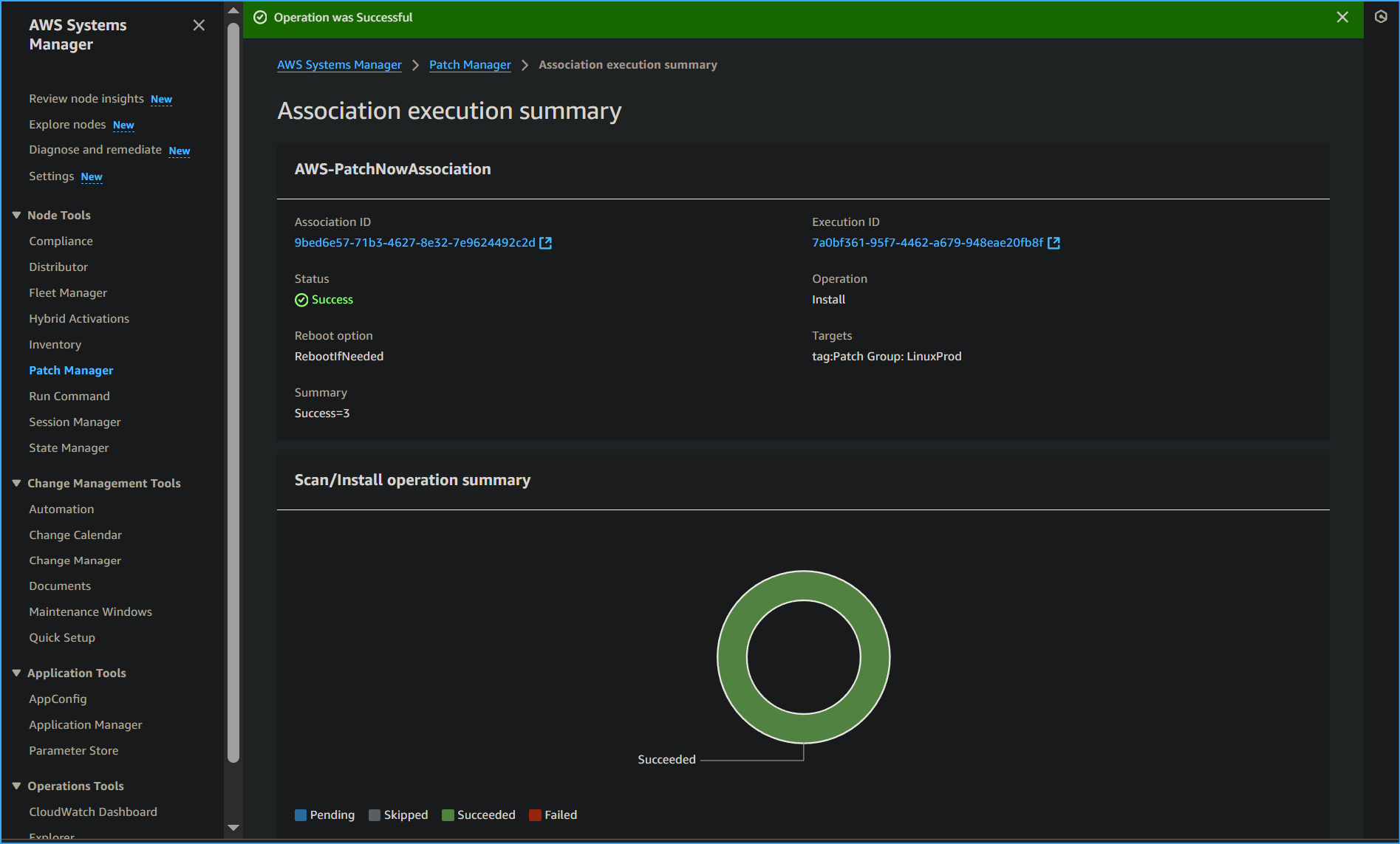

11. I monitored the patching status. A new page displayed with an AWS-PatchNowAssociation panel showing that three instances would be affected and tracking progress.
12. I watched the Scan/Install operation summary panel that displayed the status of affected EC2 instances visually. I continued monitoring until the patch operation completed on all three instances.

Task 2: Creating a Custom Patch Baseline for Windows Instances

For this task, I created a custom patch baseline for Windows instances. Although Windows has default patch baselines, for this use case, I needed to set up a baseline specifically for Windows security updates.

Here's my process:

1. I returned to the Systems Manager console by searching for "Systems Manager" at the top and selecting it.
2. In the left navigation pane, under Node Management, I selected Patch Manager.
3. I chose "Start with an overview" (or proceeded to the next step if this option didn't appear).

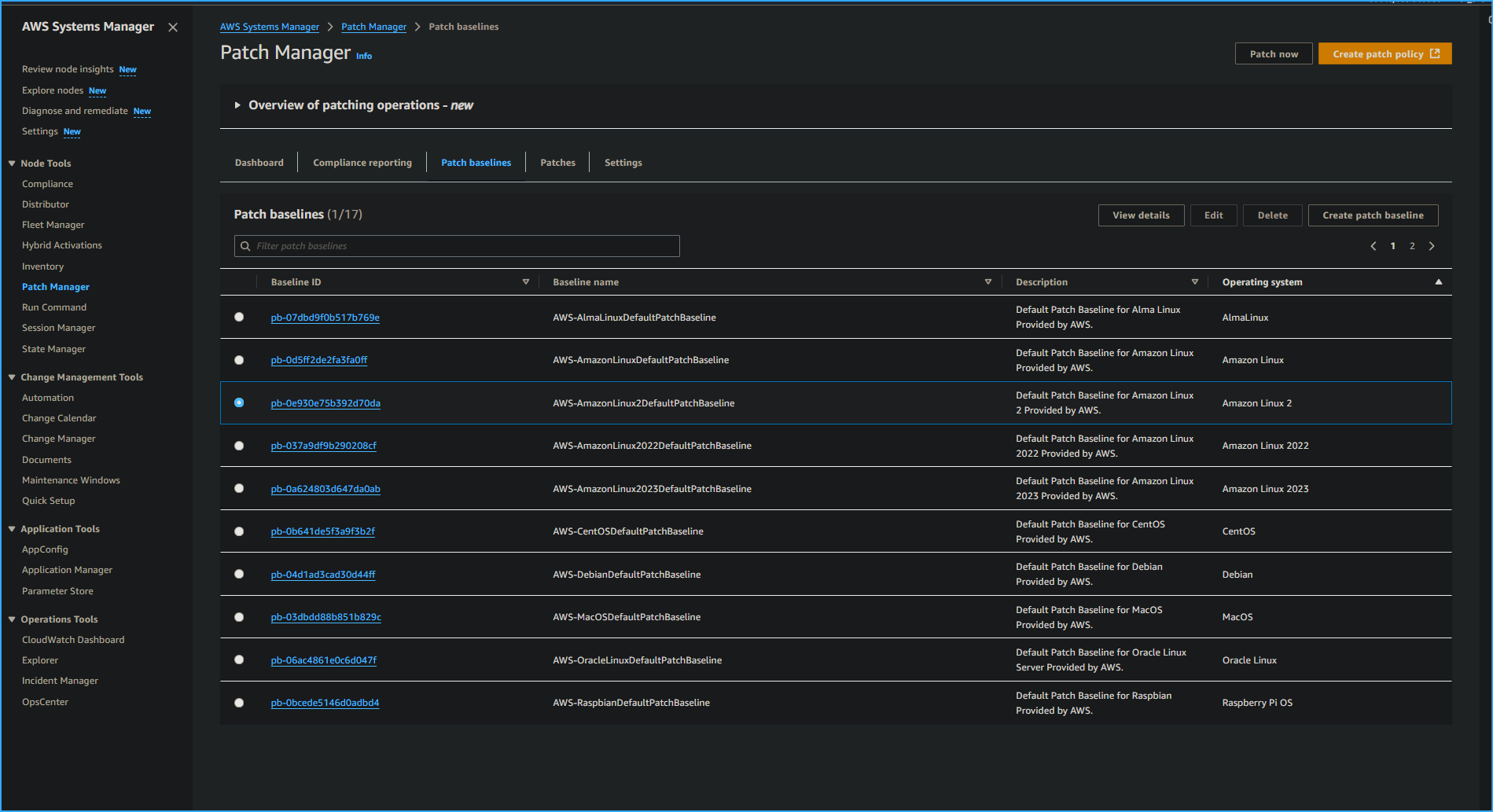

4. I clicked the "Patch baselines" tab.
5. I selected the "Create patch baseline" button.

For Patch baseline details, I configured:

In the Approval rules for operating systems section, I configured the first rule:

8. I clicked "Add rule" to add a second rule with these settings:

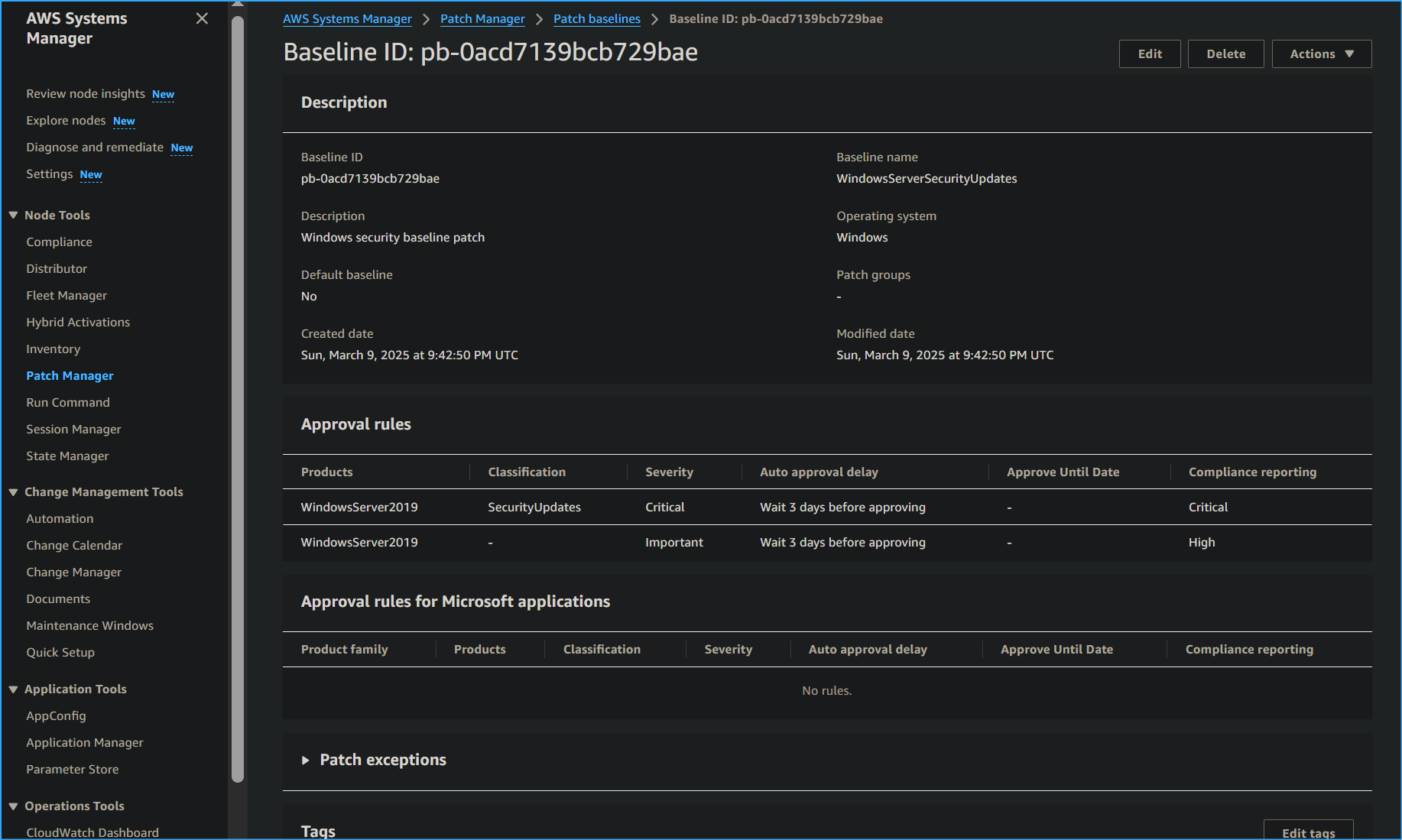

9. I clicked "Create patch baseline."

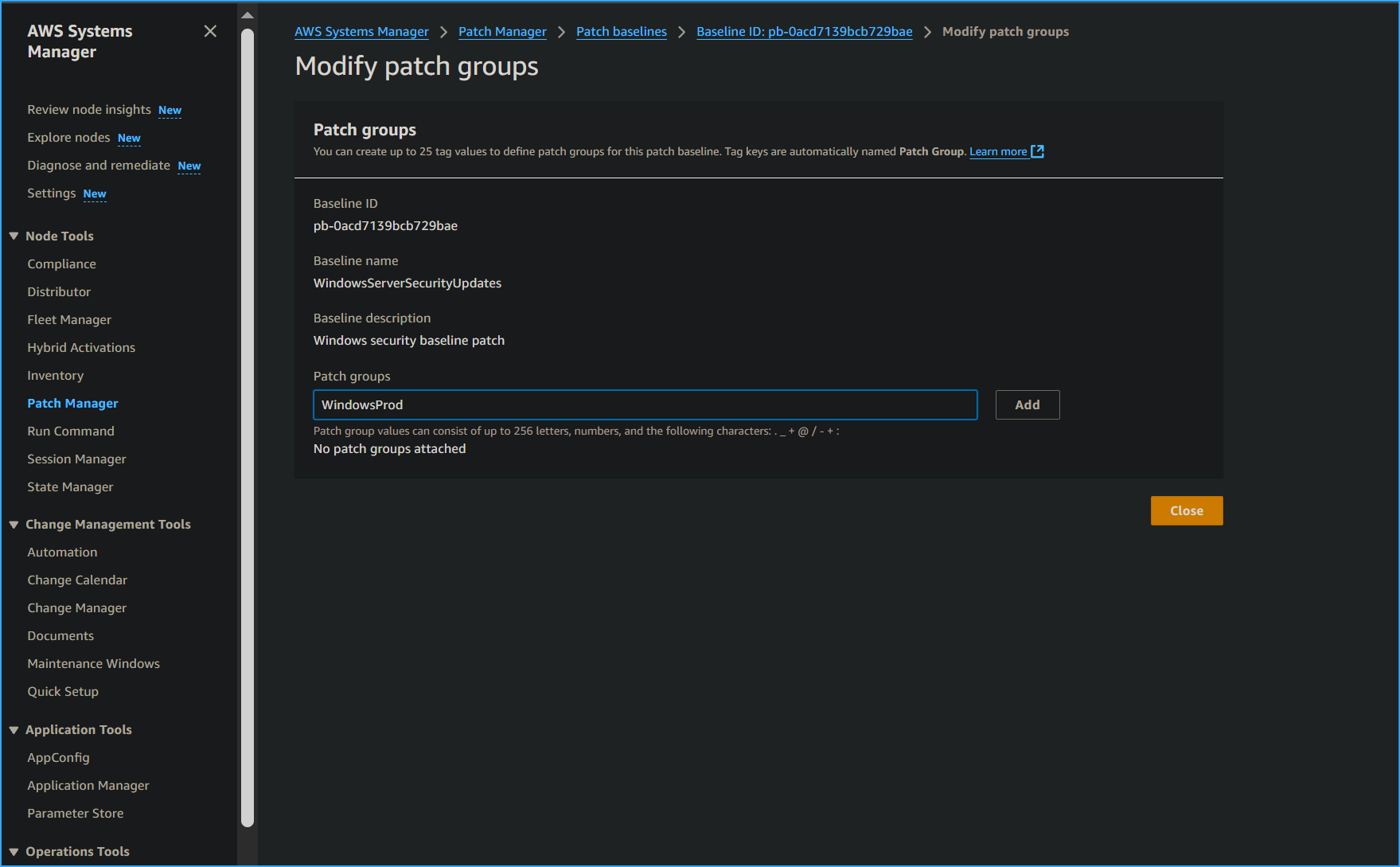

10. Next, I modified a patch group for the Windows patch baseline I just created to associate it with a patch group:

Task 3: Patching the Windows Instances

For this task, I patched the Windows instances using the Patch now feature based on the tags associated with them.

I learned that after configuration, Patch Manager uses the Run Command to call the RunPatchBaseline document. This evaluates which patches should be installed on target instances according to each instance's operating system type, either directly or during a defined schedule (maintenance window).

Task 3.1: Tagging Windows Instances

First, I tagged my Windows instances. The Linux instances were pre-configured during setup with LinuxProd tags and didn't need additional tags.

Here's what I did:

1. In the AWS Management Console search bar, I entered "EC2" and selected it.
2. I chose Instances, selected the check box next to the Windows-1 instance, and clicked the Tags tab.

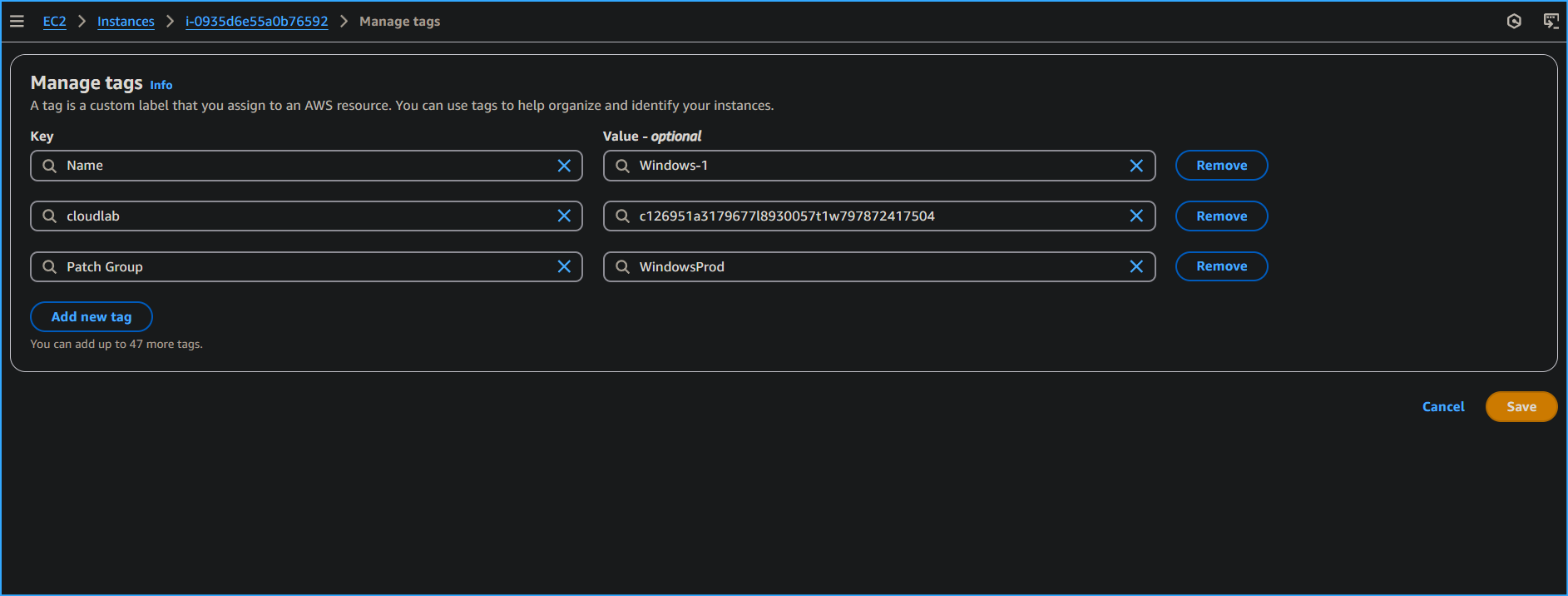

3. I clicked the "Manage tags" button, chose "Add new tag", and configured:

4. I clicked "Save."
5. I repeated these steps to tag the Windows-2 and Windows-3 instances with the same tag.

Task 3.2: Patching Windows Instances

Next, I patched the Windows instances:

1. I returned to the Systems Manager console via the search bar.
2. I selected Patch Manager.
3. I chose "Start with an overview" (or proceeded if this option didn't appear).

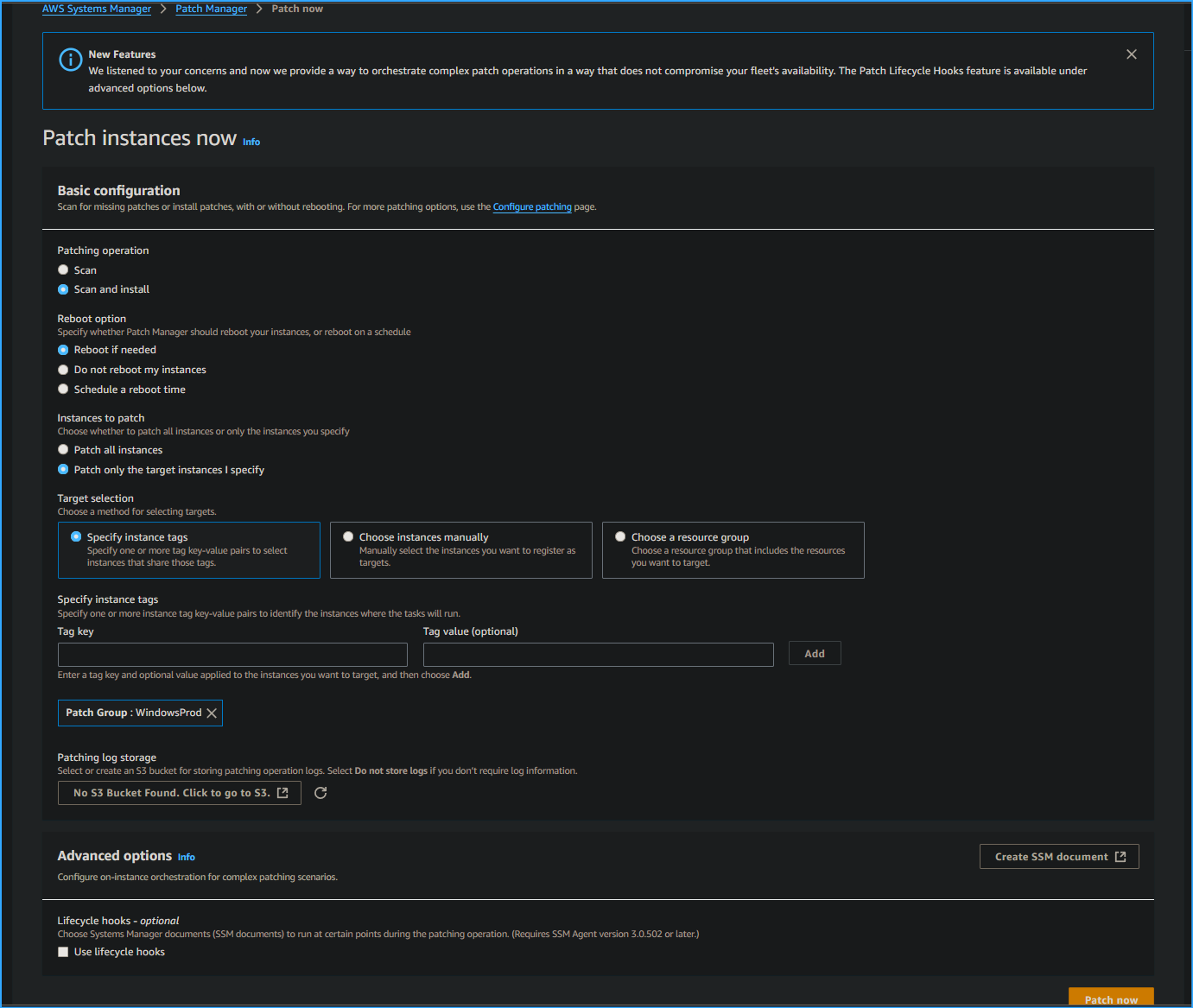

4. I clicked "Patch now" and configured:

5. I clicked "Add" and then "Patch now."

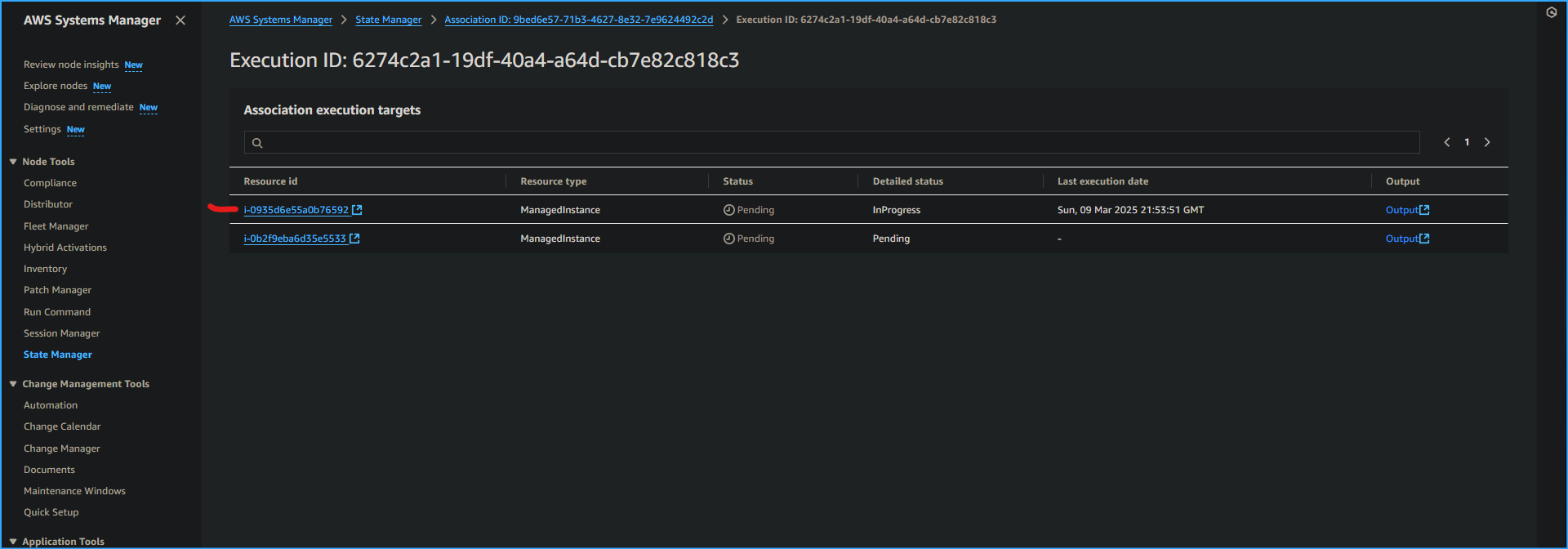

6. When available on the new page that displayed, I clicked the link to the Execution ID.
7. This opened a page in the State Manager part of Systems Manager.
8. I clicked the Output link for one of the managed instances showing "InProgress" status.
9. A page in the Run Command part of Systems Manager opened.
10. I expanded the Output panel to observe the details.

Behind the scenes, Patch Manager was using Run Command to execute PatchBaselineOperations. By scrolling through the output, I could see the PatchGroup: WindowsProd details.

I learned that a Systems Manager document (SSM document) defines the actions that Systems Manager performs on managed instances.

Task 4: Verifying Compliance

Finally, I verified compliance:

1. In the left navigation pane, under Node Management, I selected Patch Manager.
2. I clicked the Dashboard tab. Under Compliance summary, I saw "Compliant: 6," confirming all Windows and Linux instances were compliant.

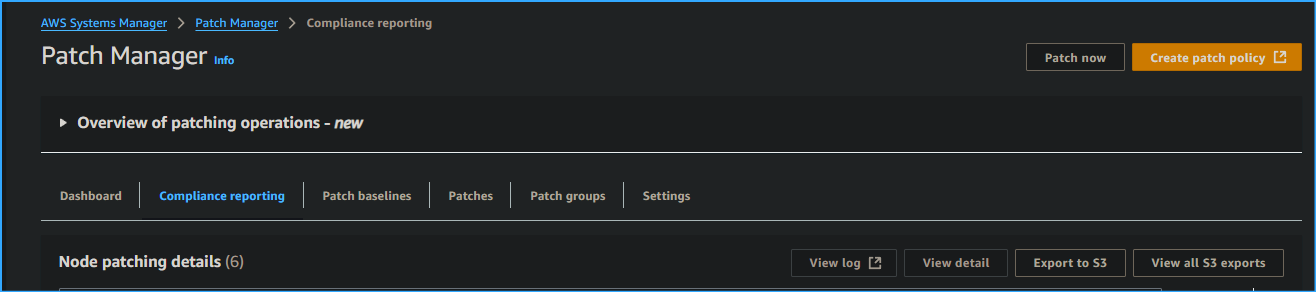

3. I selected the Compliance reporting tab, which provides an overview of all running instances with SSM. I verified that the Compliance status of all Linux and Windows instances was listed as Compliant.
4. I confirmed all six instances (three Linux and three Windows) showed as compliant.

I scrolled right in the Node patching details panel to find for each instance:

• Critical noncompliant count
• Security noncompliant count
• Other noncompliant count
• Last operation date
• Baseline ID

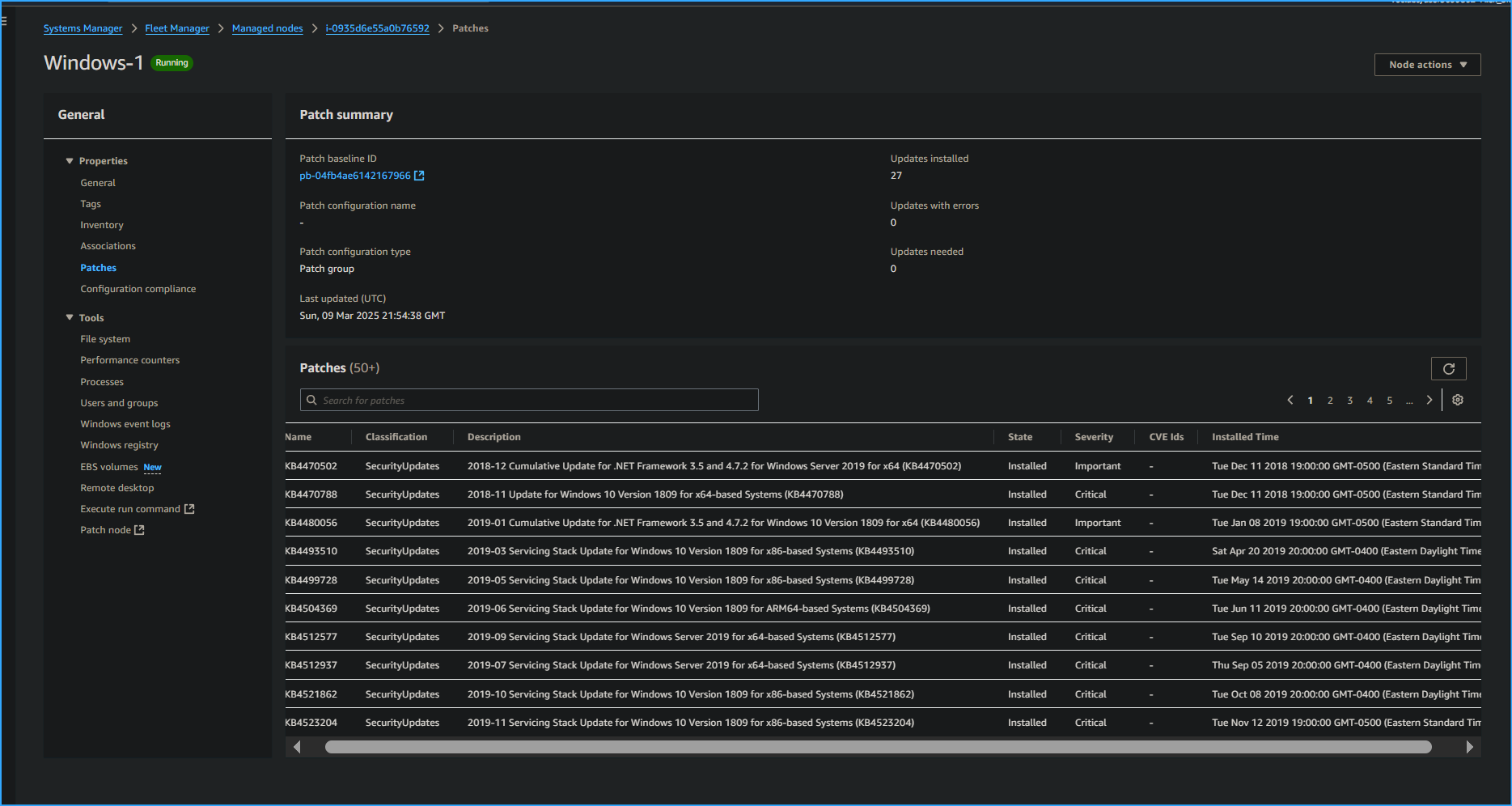

5. I selected the Node ID for one of the Windows nodes.
6. On the Node ID page that opened, I clicked the Patch tab.
7. I scrolled down to observe what patches were applied to this instance and checked the Installed Time.
