Work with Amazon S3

My Objectives

By the end of this work, I successfully:

• Used s3api and s3 AWS CLI commands to create and configure an S3 bucket
• Verified write permissions for a user on an S3 bucket
• Configured event notification on an S3 bucket

Connecting to the CLI Host EC2 instance and configuring the AWS CLI

Connecting to the CLI Host EC2 instance

First, I connected to the CLI Host EC2 instance using EC2 Instance Connect:

• On the AWS Management Console, I searched for and opened the EC2 Management Console
• In the navigation pane, I selected Instances
• From the list of instances, I selected the CLI Host instance
• I clicked Connect
• On the EC2 Instance Connect tab, I clicked Connect again
• This opened a new browser tab with the EC2 Instance Connect terminal window

I used this terminal window to complete all tasks throughout. When the terminal became unresponsive, I refreshed the browser or reconnected using these steps.

Configuring the AWS CLI on the CLI Host instance

To set up the AWS CLI profile with credentials, I ran the following command in the EC2 Instance Connect terminal:

At the prompts, I entered the following values:

• AWS Access Key ID: I entered the value for AccessKey
• AWS Secret Access Key: I entered the value for SecretKey
• Default region name: I entered us-west-2
• Default output format: I entered json

With this setup, I was ready to run AWS CLI commands to interact with AWS services.

Creating and initializing the S3 share bucket

In this task, I used the AWS CLI to create the S3 share bucket and upload some images.

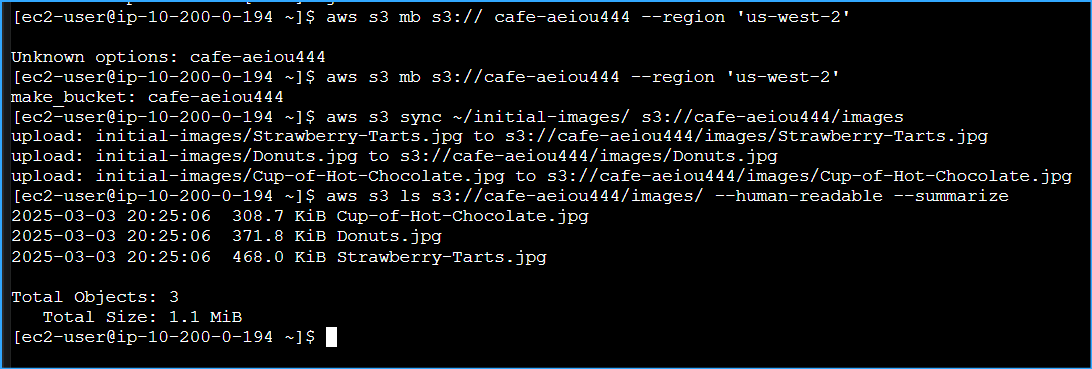

To create the S3 bucket, I ran:

I replaced <cafe-xxxnnn> with my unique bucket name that began with cafe- and included a combination of letters and numbers.

I received a message similar to: make_bucket: cafe-xxxx9999999

Bucket names cannot contain uppercase letters. I made sure my bucket name didn't include uppercase letters to avoid errors.

Next, I loaded some images into the S3 bucket under the /images prefix. Sample image files were provided in the initial-images folder on the CLI Host:

The command output listed all the image files being uploaded.

To verify that the files were synced to the S3 bucket, I ran:

I could see the details of the uploaded image files, including the number of files uploaded and their total size.

Reviewing the IAM group and user permissions

Next, I reviewed the permissions assigned to the mediaco IAM user group. This group was created to provide a way for media company users to use the AWS Management Console or AWS CLI to upload and modify images in the S3 share bucket.

Reviewing the mediaco IAM group

To review the permissions assigned to the mediaco group:

• On the AWS Management Console, I searched for and opened the IAM Management Console
• In the navigation pane, I selected User groups
• From the User groups list, I selected mediaco
• The Summary page for the mediaco group appeared
• I clicked the Permissions tab

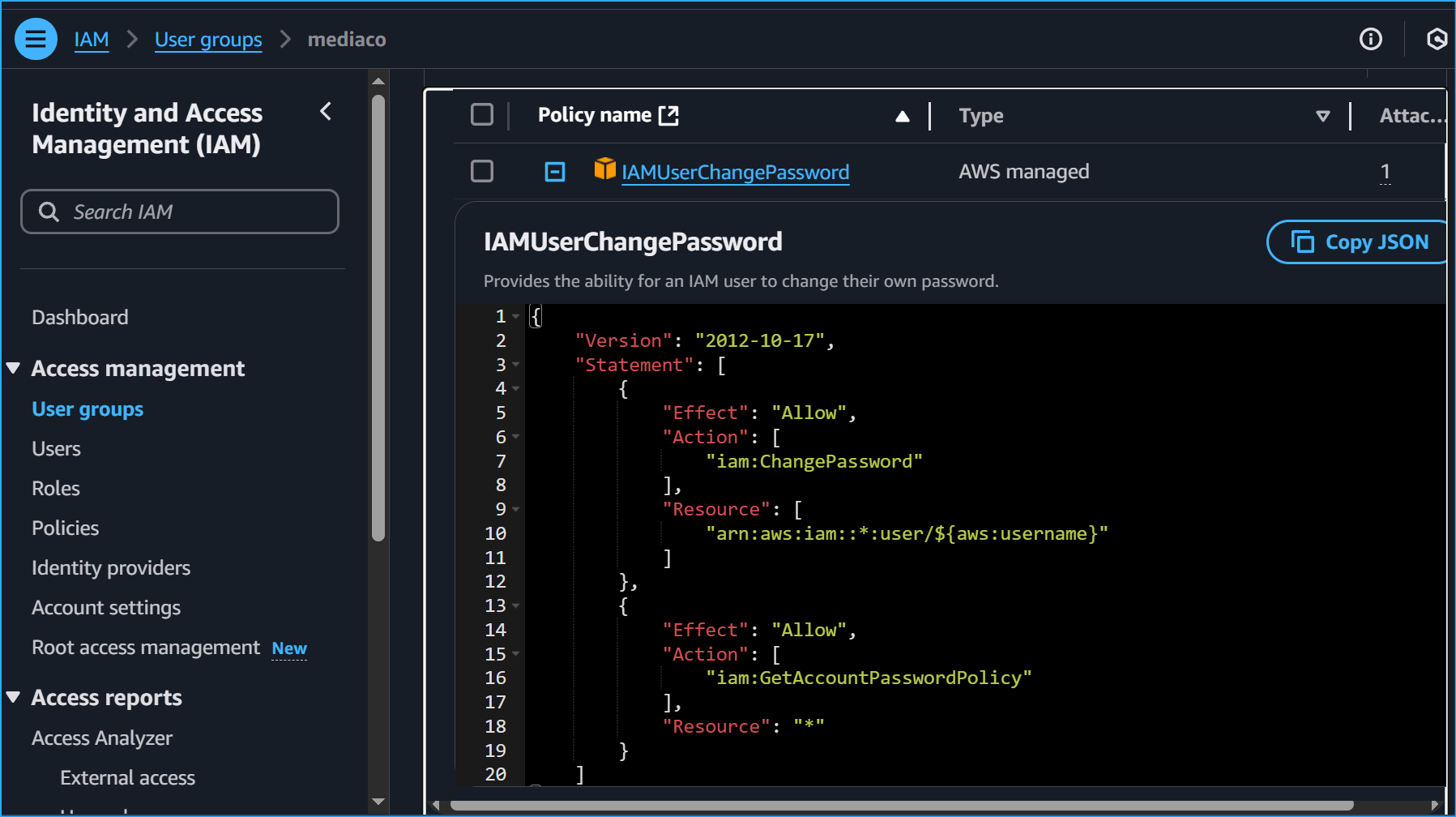

• Next to IAMUserChangePassword, I clicked + to expand the policy
• I reviewed the AWS managed policy that permits users to change their own password
• I collapsed the policy by clicking -

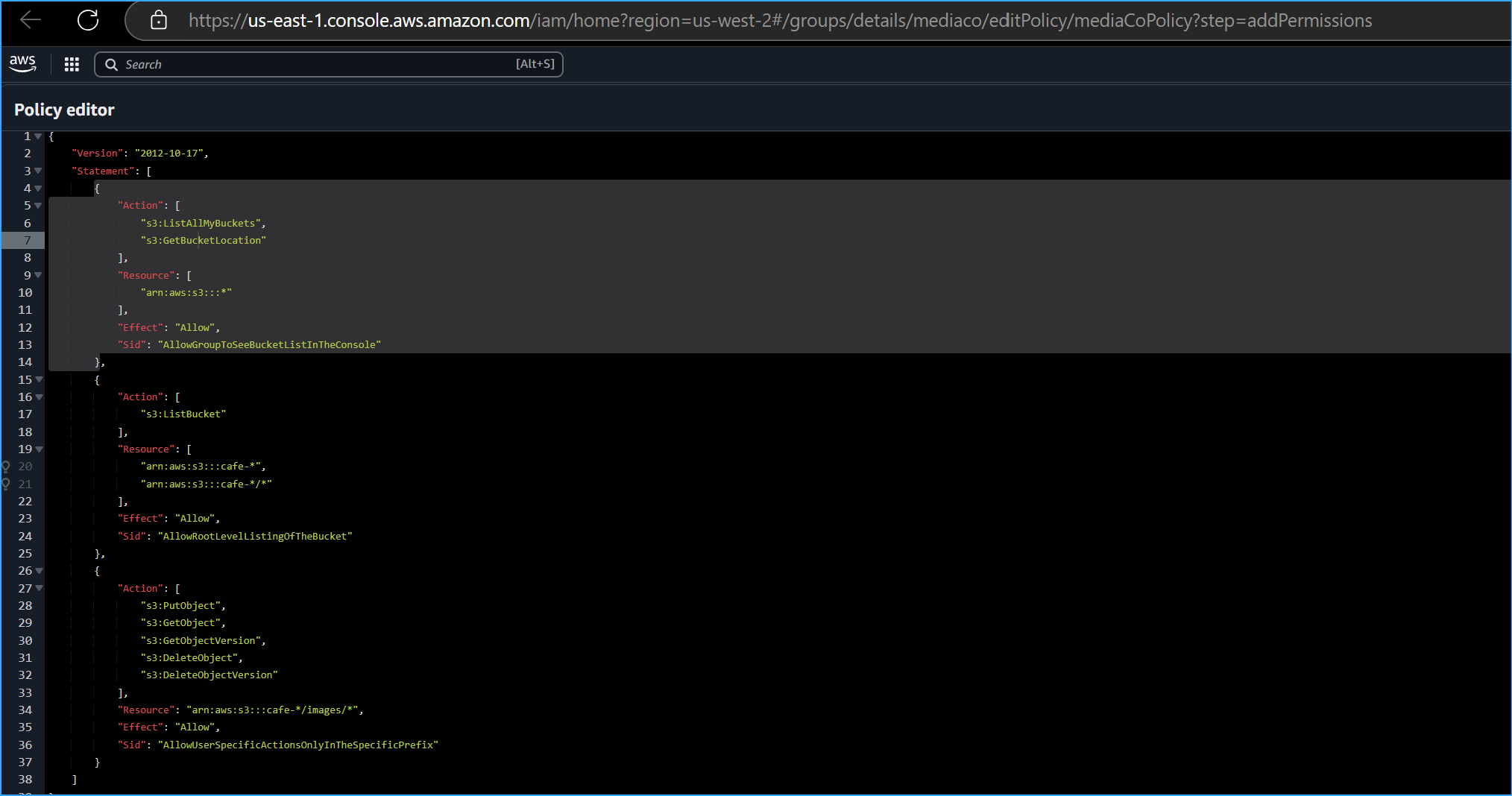

• Next to mediaCoPolicy, I clicked + to expand the policy

I noticed the following statements in this policy:

• The first statement (Sid: AllowGroupToSeeBucketListInTheConsole) defined permissions allowing the user to view the list of S3 buckets in the account using the Amazon S3 console
• The second statement (Sid: AllowRootLevelListingOfTheBucket) defined permissions allowing the user to view the list of first-level objects in the cafe bucket and other objects in the bucket using the Amazon S3 console
• The third statement (Sid: AllowUserSpecificActionsOnlyInTheSpecificPrefix) defined permissions specifying actions the user could perform on objects in the cafe-*/images/* folder. The main operations were GetObject, PutObject, and DeleteObject, corresponding to read, write, and delete permissions granted to the mediacouser user.

Reviewing the mediacouser IAM user

To review the properties of the mediacouser user:

• In the IAM console navigation pane, I selected Users
• From the Users list, I selected mediacouser
• On the Permissions tab, I saw two policies: IAMUserChangePassword and mediaCoPolicy, assigned to the mediaco IAM group
• To verify the mediaco IAM group, I clicked the Groups tab
• I confirmed mediacouser was a member of this group and inherited the permissions assigned to the mediaco group

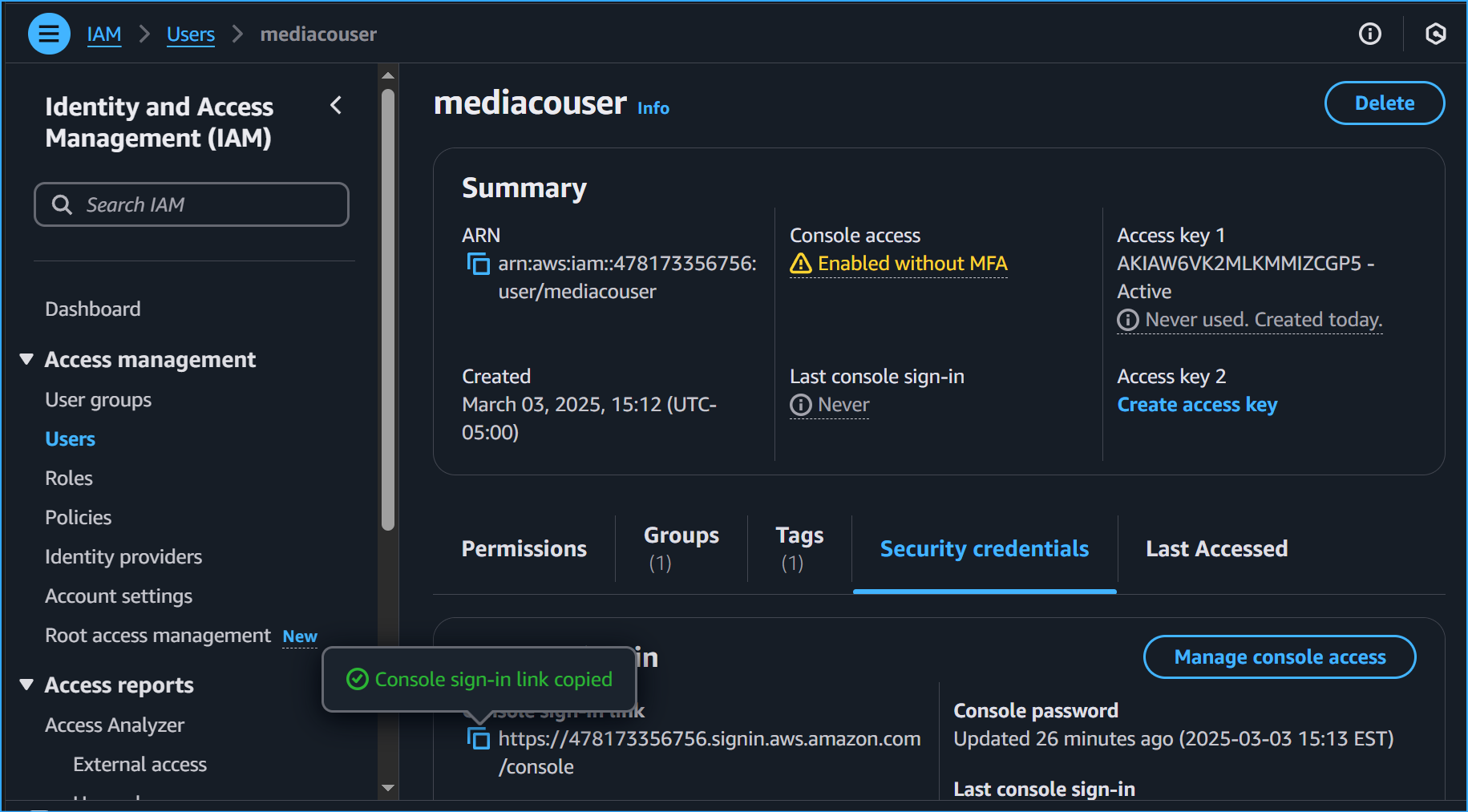

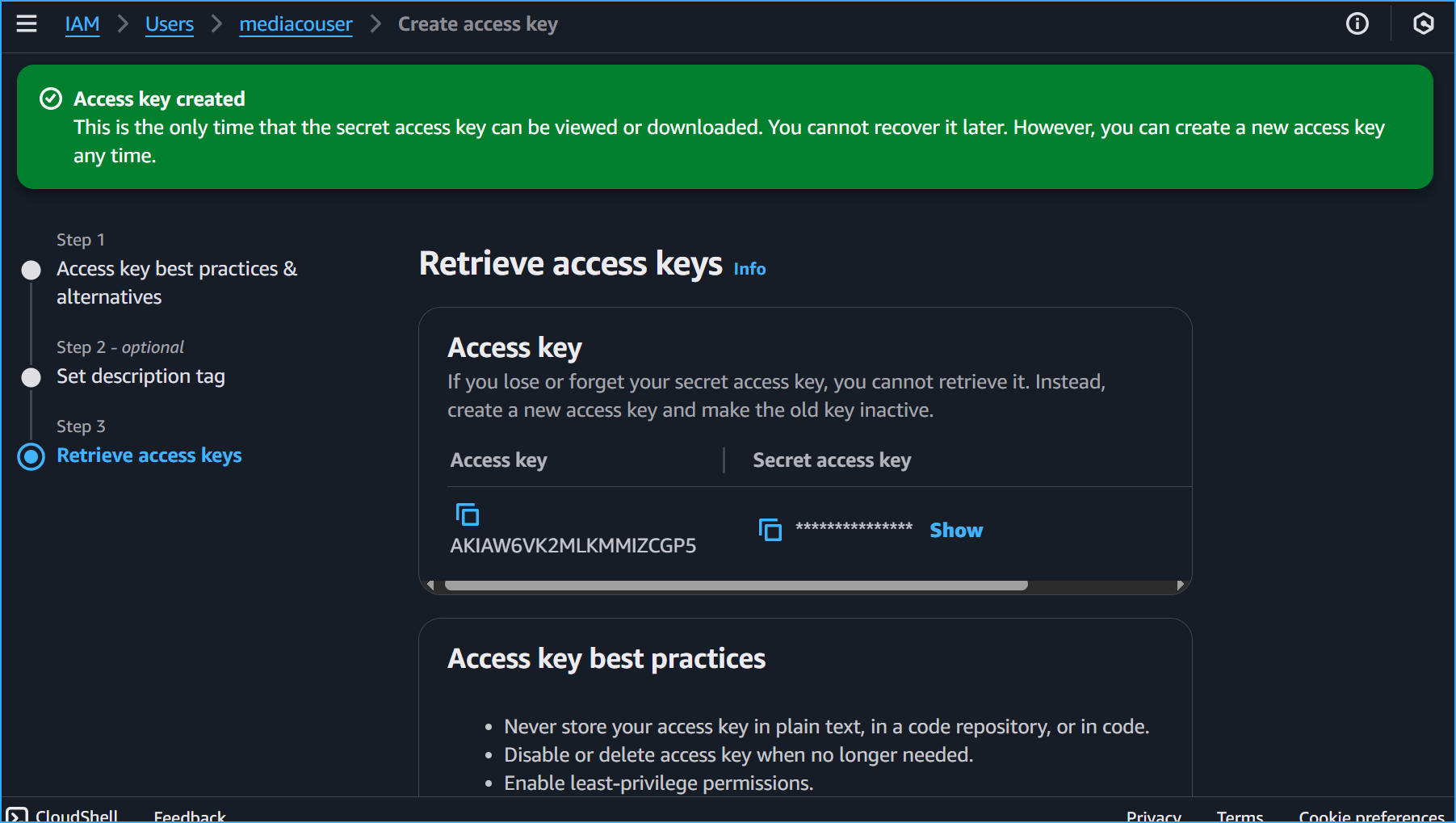

I created an access key for the mediacouser:

• I clicked the Security credentials tab
• In the Access keys section, I clicked Create access key
• I selected Command Line Interface (CLI)
• I checked the box "I understand the above recommendation and want to proceed to create an access key"
• I clicked Next, then Create access key
• I downloaded the .csv file with the credentials

Testing the mediacouser permissions

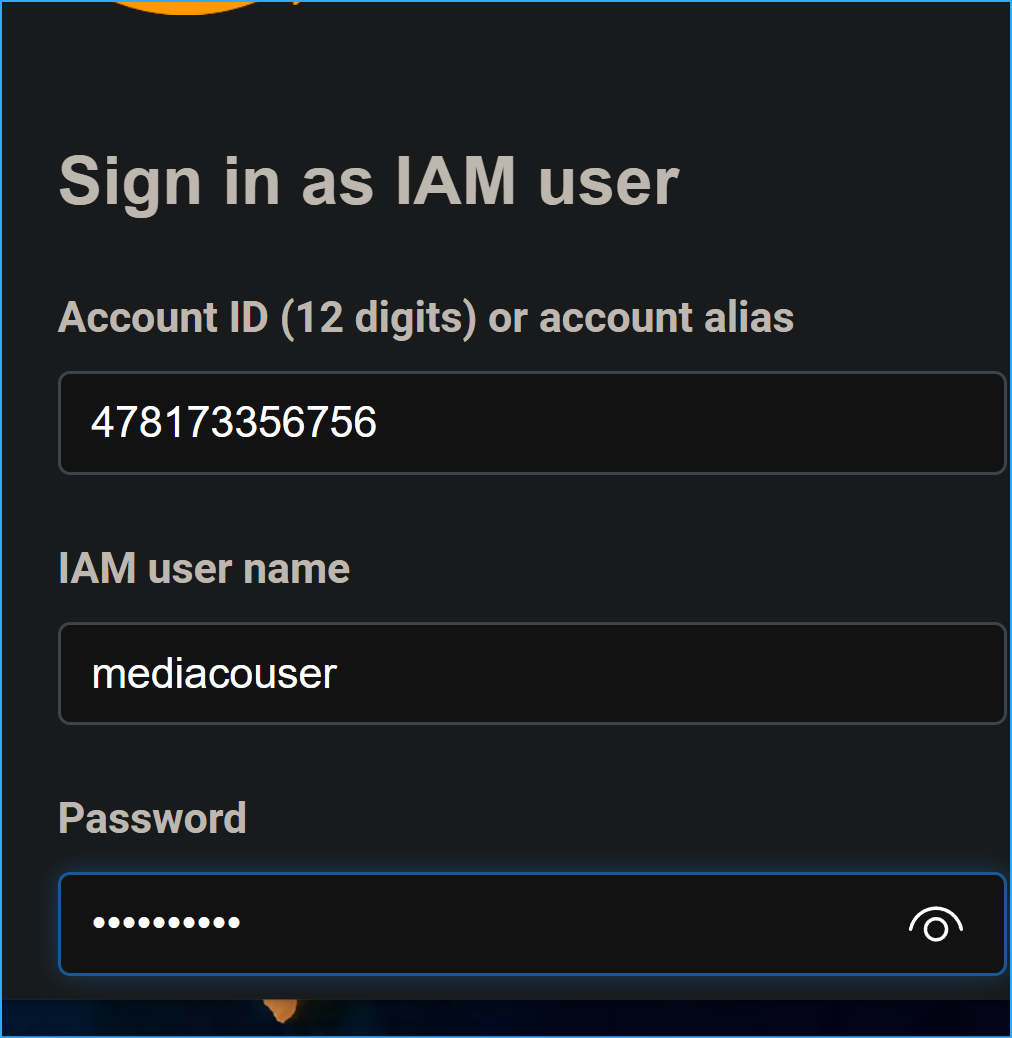

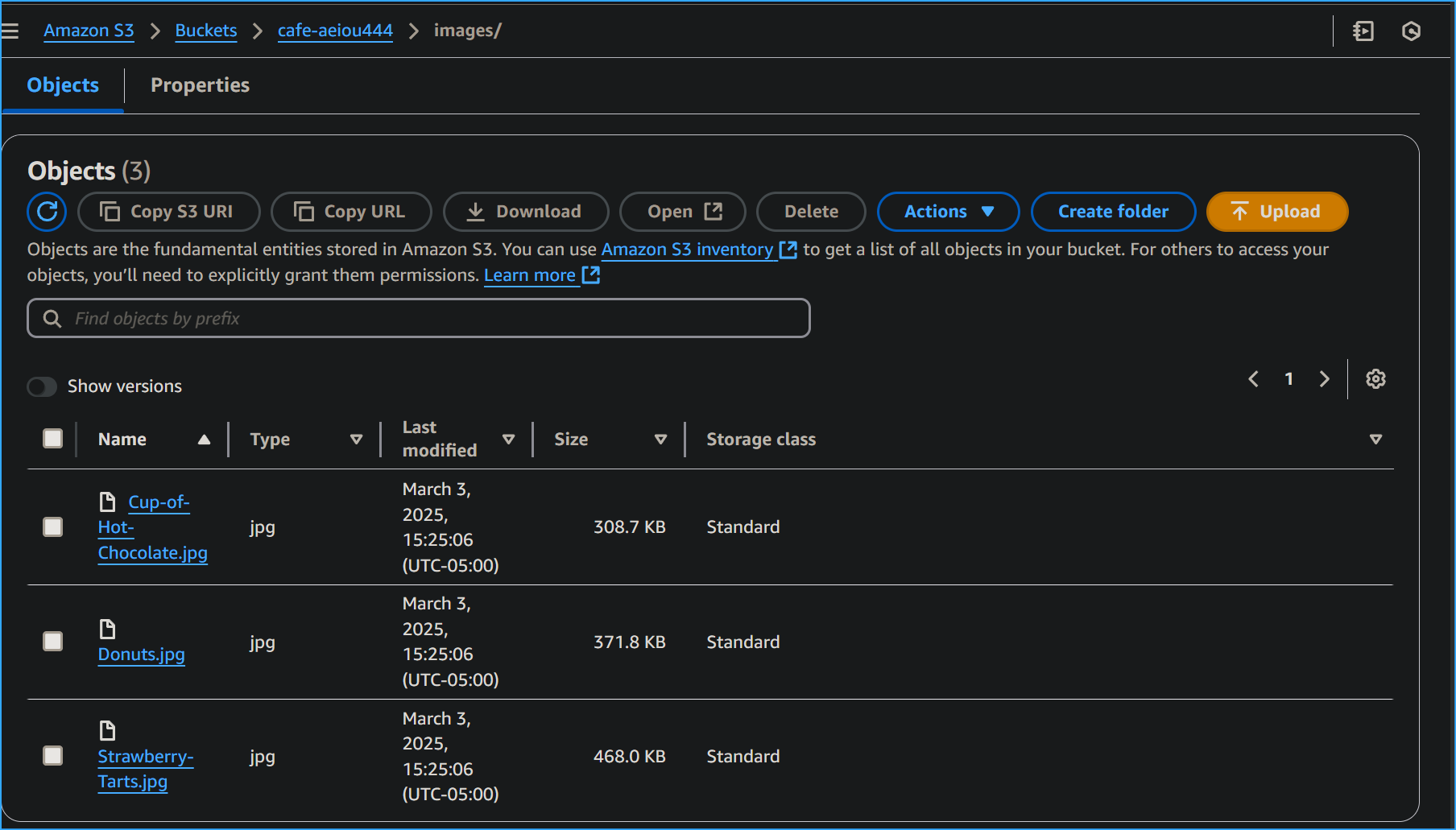

I tested the permissions by signing in to AWS Management Console as mediacouser and performing view, upload, and delete operations on the contents of the images folder in the S3 share bucket.

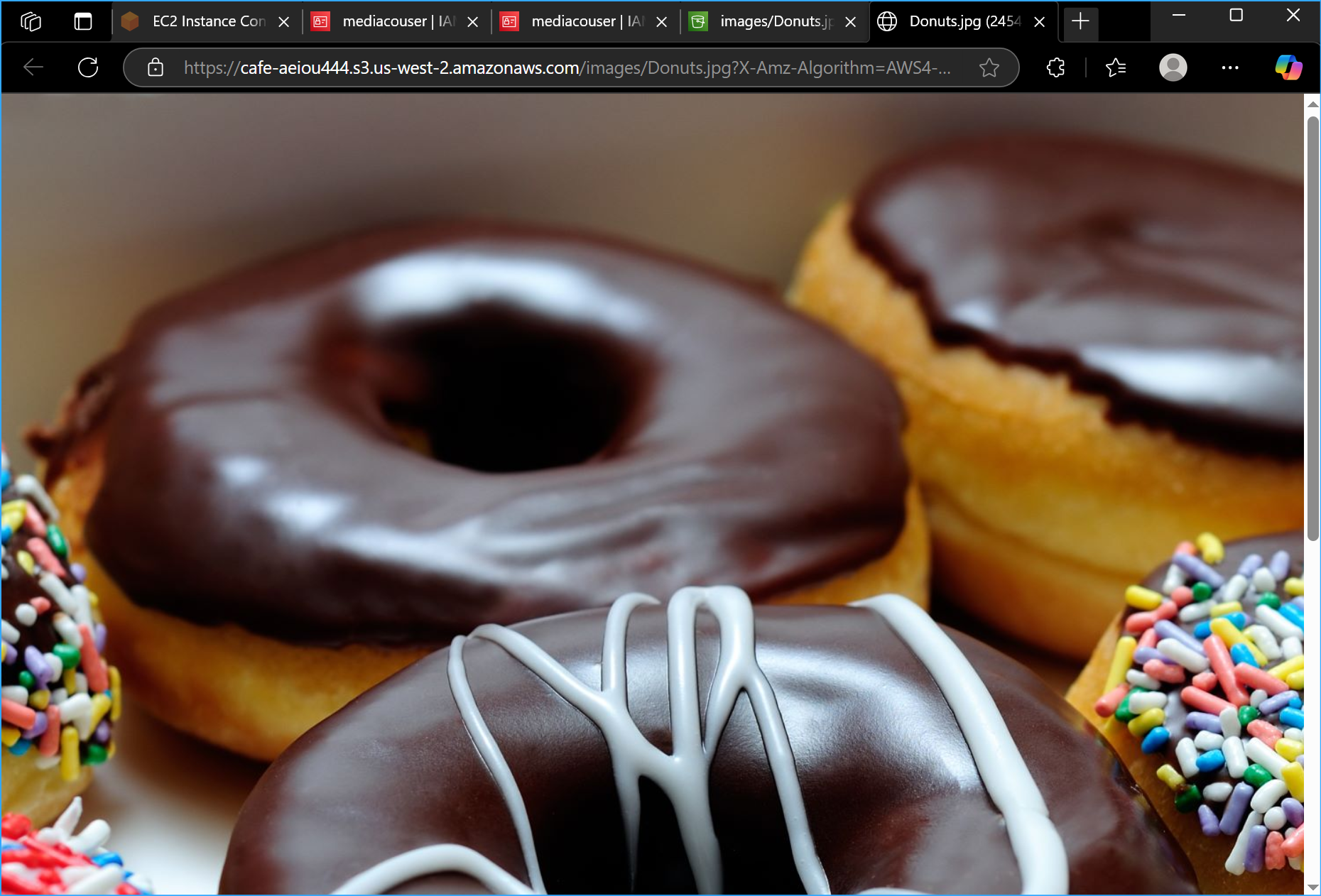

To test viewing:

• I selected Donuts.jpg and clicked Open
• A new browser tab opened showing various donuts

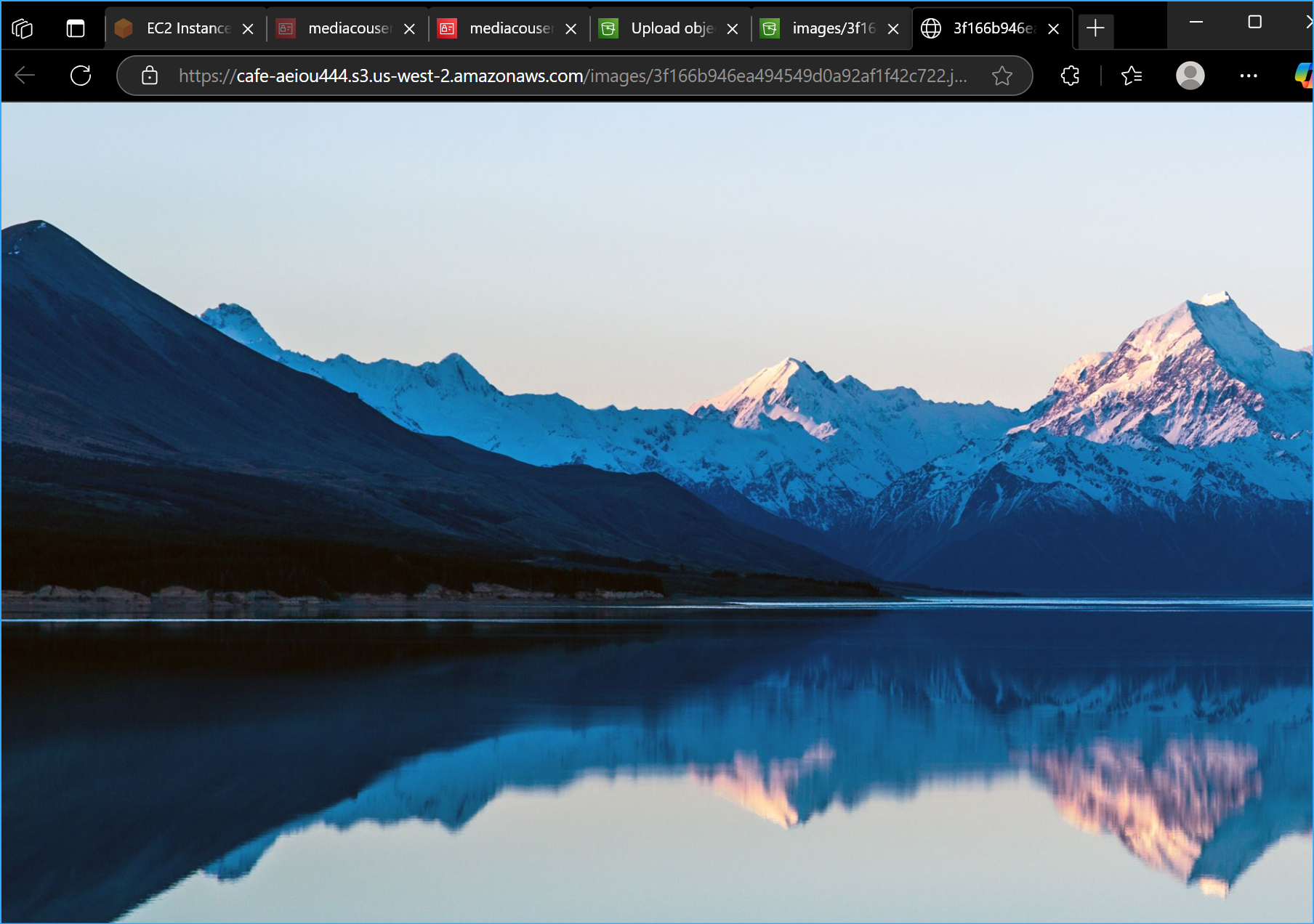

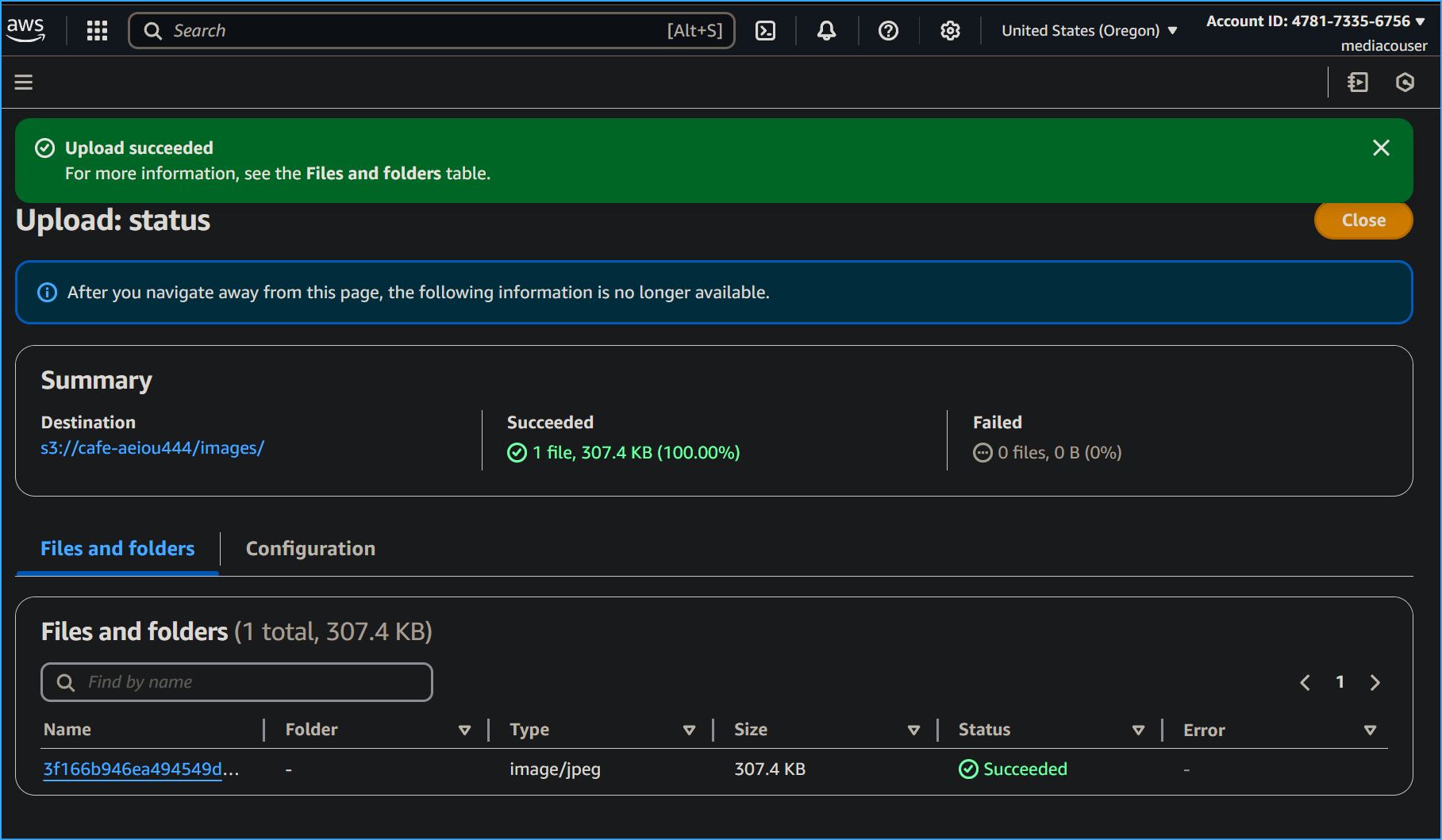

To test uploading:

• I clicked Upload
• On the Upload page, I clicked Add files and selected an image from my local computer
• I clicked Upload
• After uploading, I clicked Close

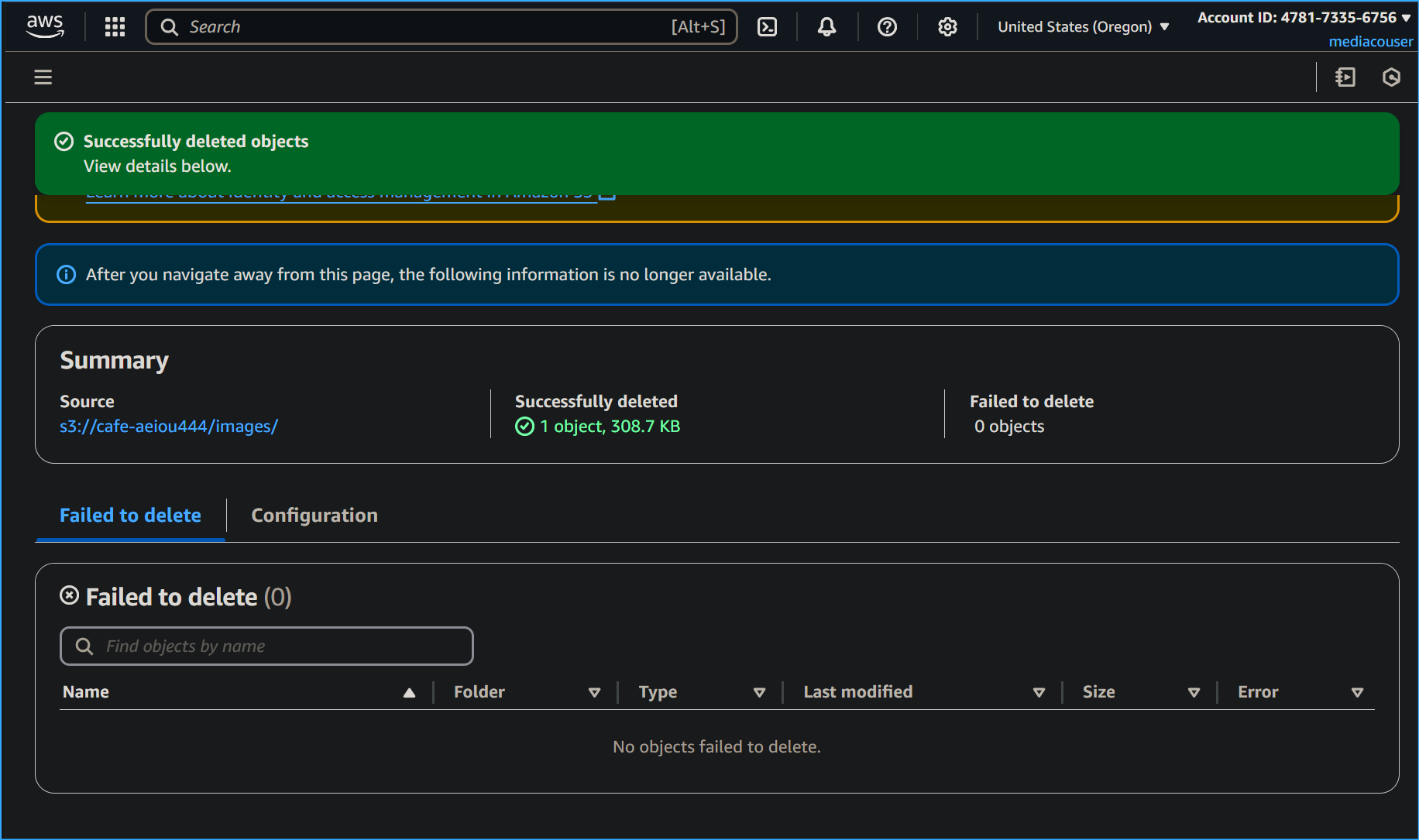

To test deleting:

• I selected Cup-of-Hot-Chocolate.jpg
• I clicked Delete
• On the Delete objects page, I typed "delete" in the confirmation box
• I clicked Delete objects

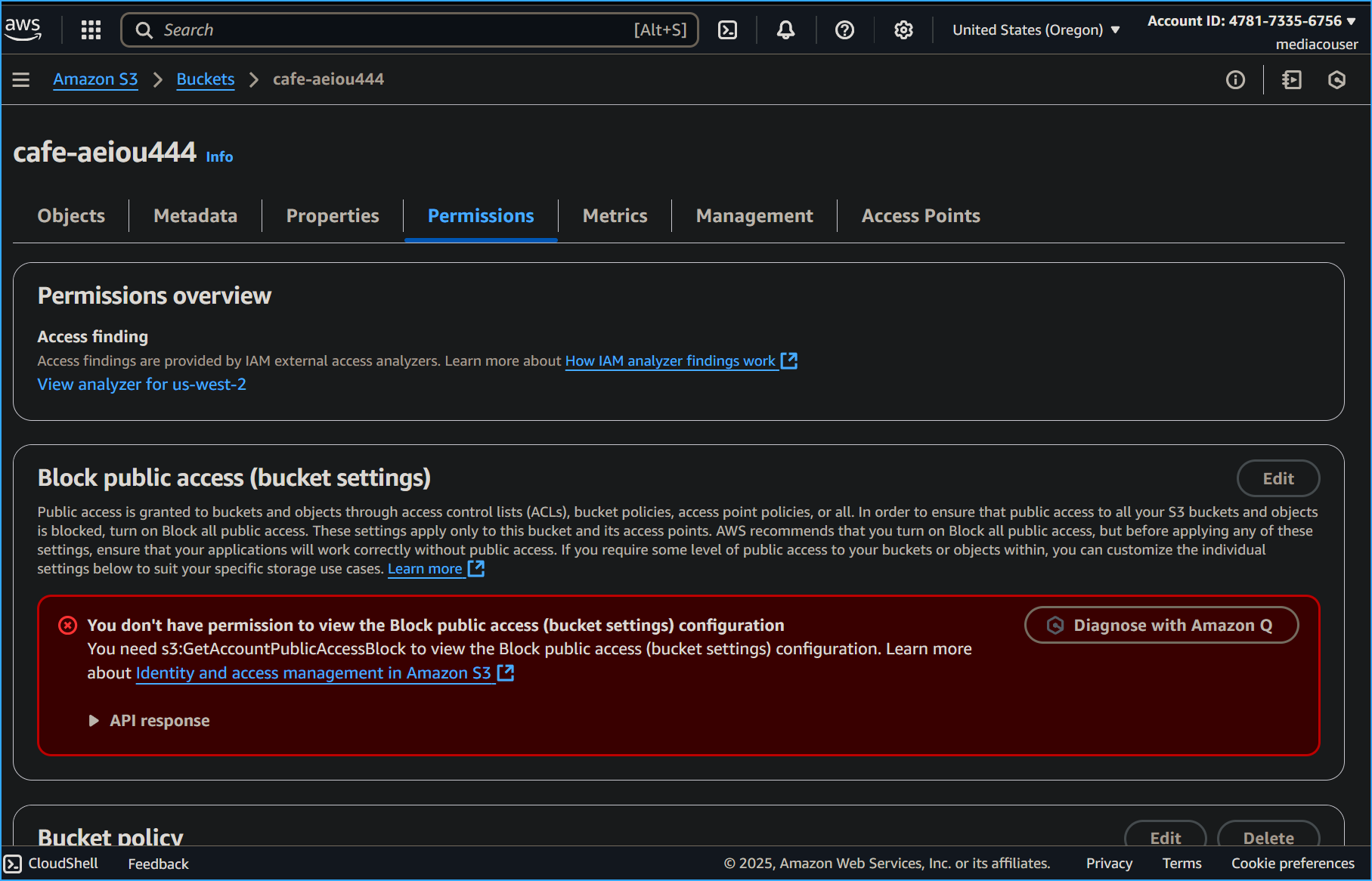

To test unauthorized operations:

• In the breadcrumb trail, I clicked my bucket to return to the bucket content list
• I clicked the Permissions tab
• For Permissions overview, I saw the error message "Insufficient permissions"
• I confirmed mediacouser couldn't change bucket permissions

Configuring event notifications on the S3 share bucket

In this task, I configured the S3 share bucket to generate event notifications to an SNS topic whenever the bucket contents changed.

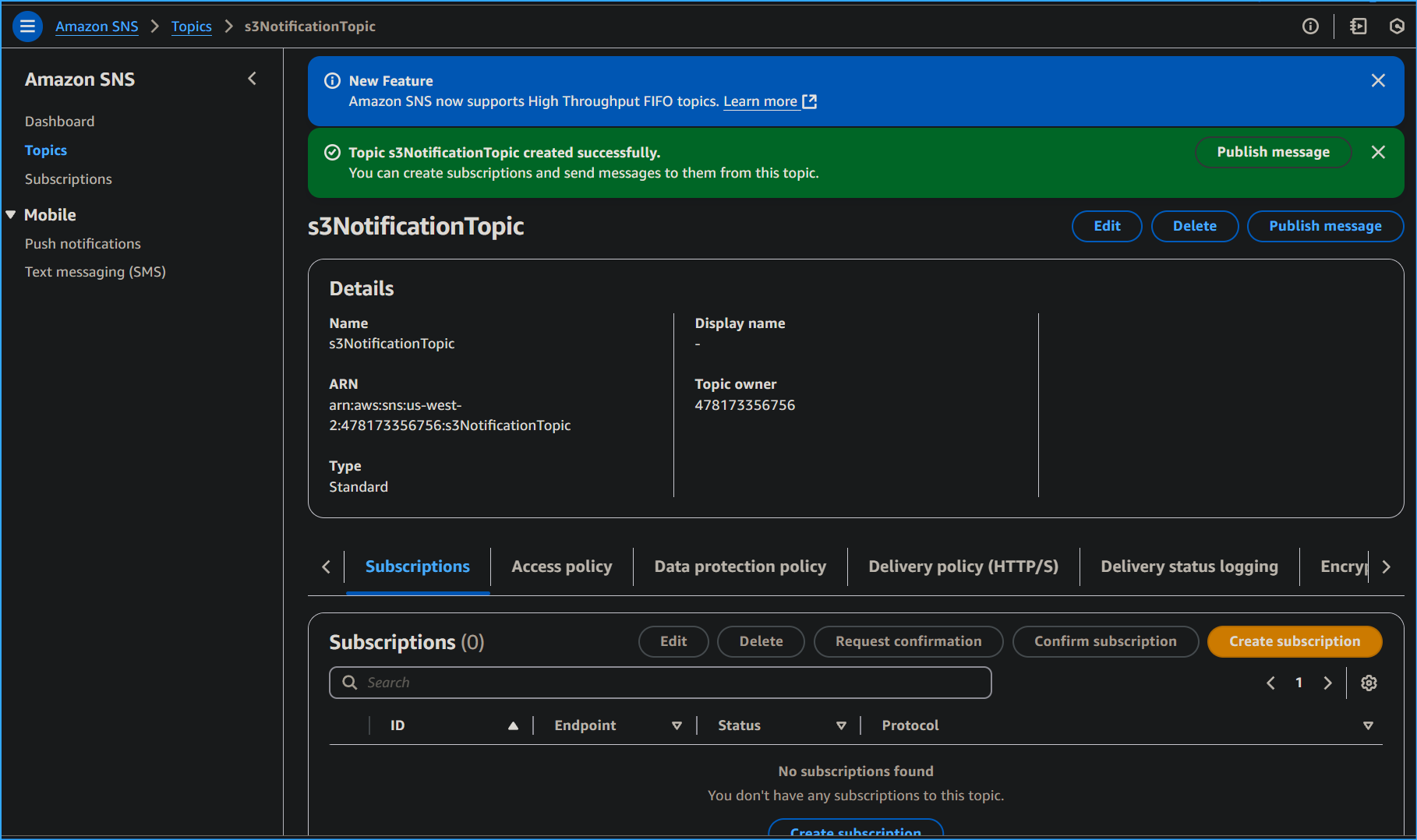

Creating and configuring the s3NotificationTopic SNS topic

I returned to the AWS Management Console where I was signed in as voclabs/user.

• I searched for and opened the Simple Notification Service console
• In the navigation pane, I selected Topics
• I clicked Create topic
• I selected Standard
• For Name, I entered s3NotificationTopic
• I clicked Create topic

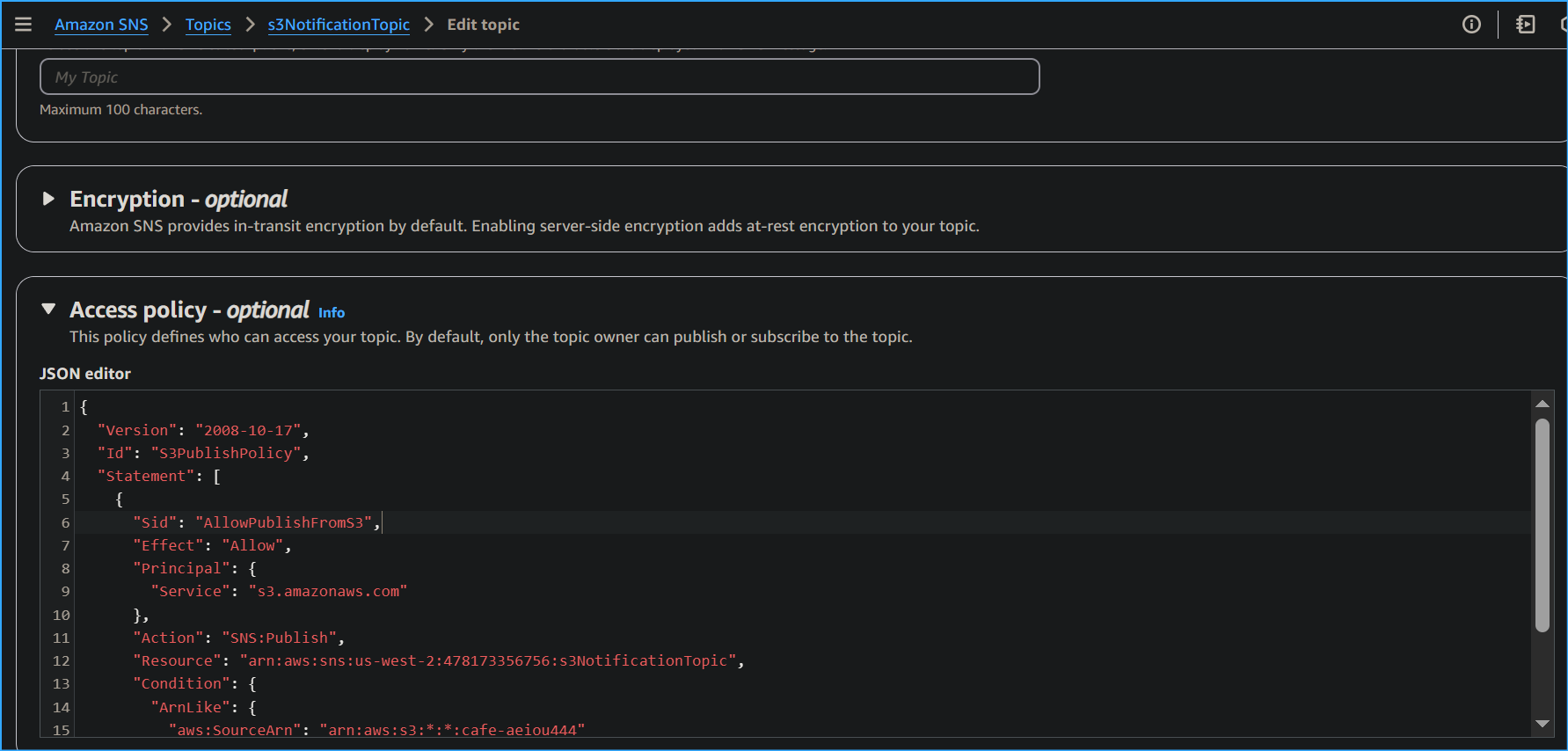

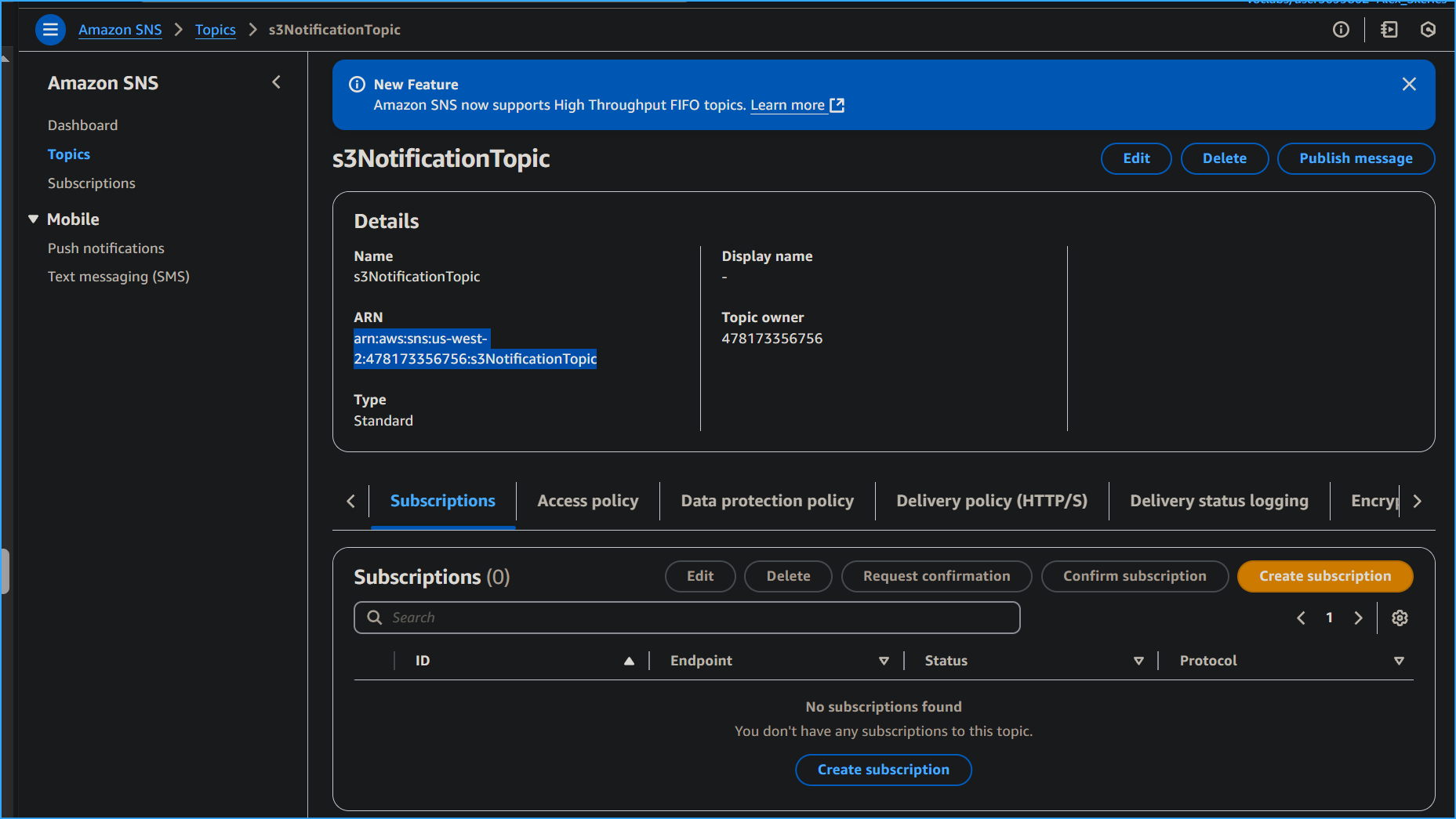

To configure the topic's access policy, I clicked Edit and expanded the Access policy section. I replaced the contents of the JSON editor with the following policy:

This policy granted my cafe S3 share bucket permission to publish messages to the s3NotificationTopic SNS topic.

Email Subscription Setup

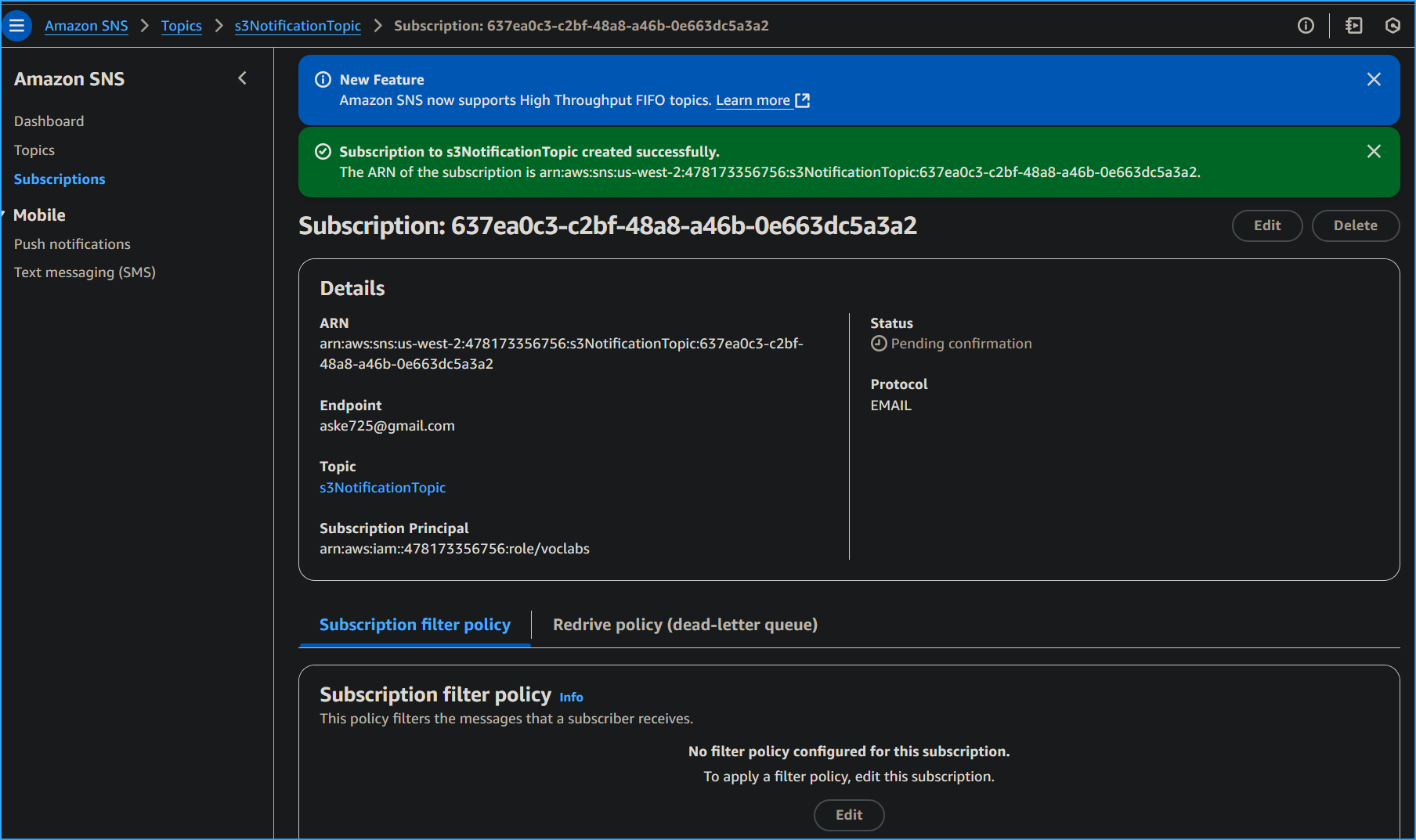

• In the s3NotificationTopic pane, I clicked the Subscriptions tab
• I clicked Create subscription
• I clicked the Topic ARN box and selected s3NotificationTopic
• From the Protocol dropdown list, I selected Email
• In the Endpoint box, I entered my email address
• I clicked Create subscription
• I checked my email inbox and found a message with subject "AWS Notification - Subscription Confirmation"
• I opened the email and clicked Confirm subscription

Adding an event notification configuration to the S3 bucket

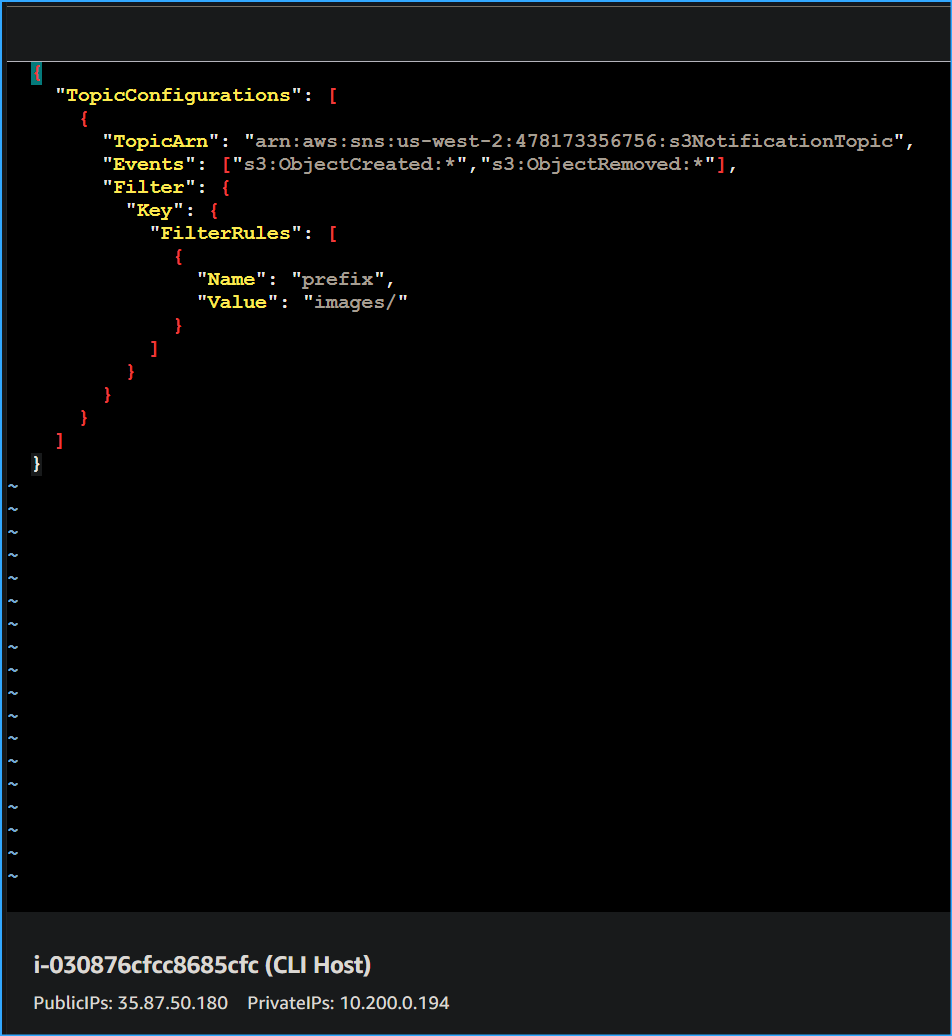

I created an event notification configuration file identifying events for Amazon S3 to publish and the topic destination for notifications:

I customized and pasted this JSON configuration:

This configuration requested Amazon S3 to publish event notifications to my SNS topic whenever an ObjectCreated or ObjectRemoved event occurred on objects with a prefix of images/.

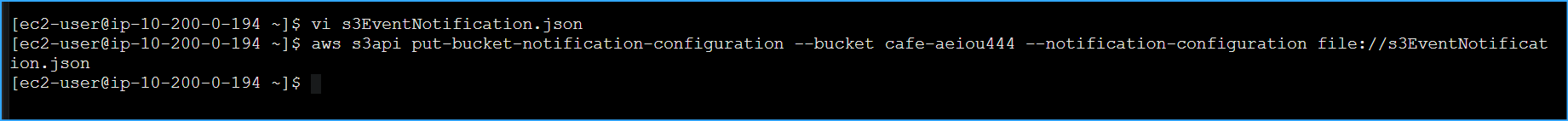

To associate the configuration with my bucket, I ran:

Testing the S3 share bucket event notifications

In this final task, I tested the S3 bucket event notification by performing the expected mediacouser operations which triggered email notifications.

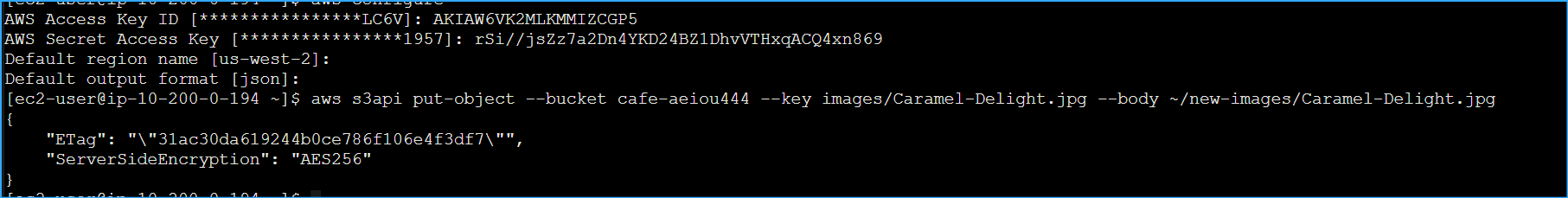

Configuring the AWS CLI for mediacouser

At the prompts, I entered the mediacouser credentials:

• AWS Access Key ID: I pasted the Access key ID from mediacouser_accessKeys.csv
• AWS Secret Access Key: I pasted the Secret Access Key from the same file
• Default region name: I pressed Enter to keep the same Region
• Default output format: I entered json

Testing Operations and Notifications

To test the put operation, I uploaded an image:

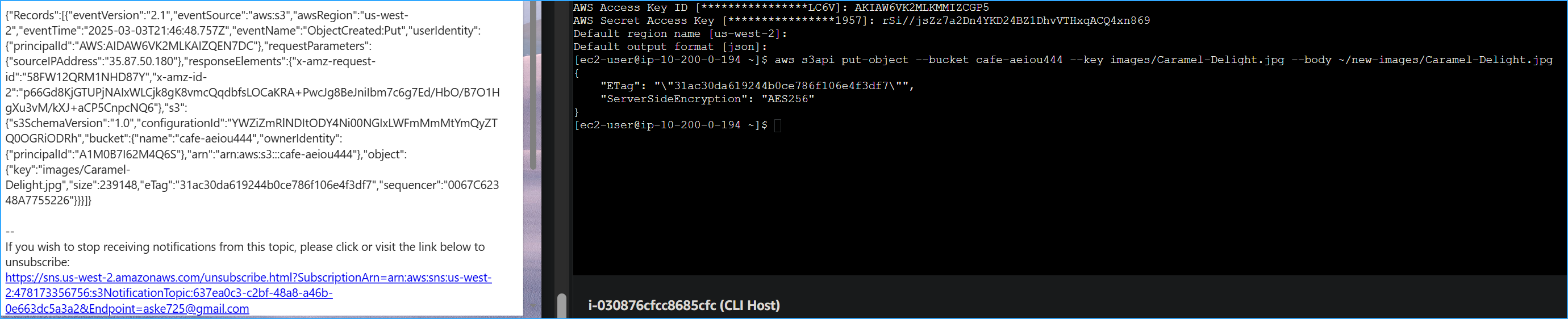

I checked my email inbox and found a notification with:

• The eventName value was ObjectCreated:Put
• The object key was images/Caramel-Delight.jpg

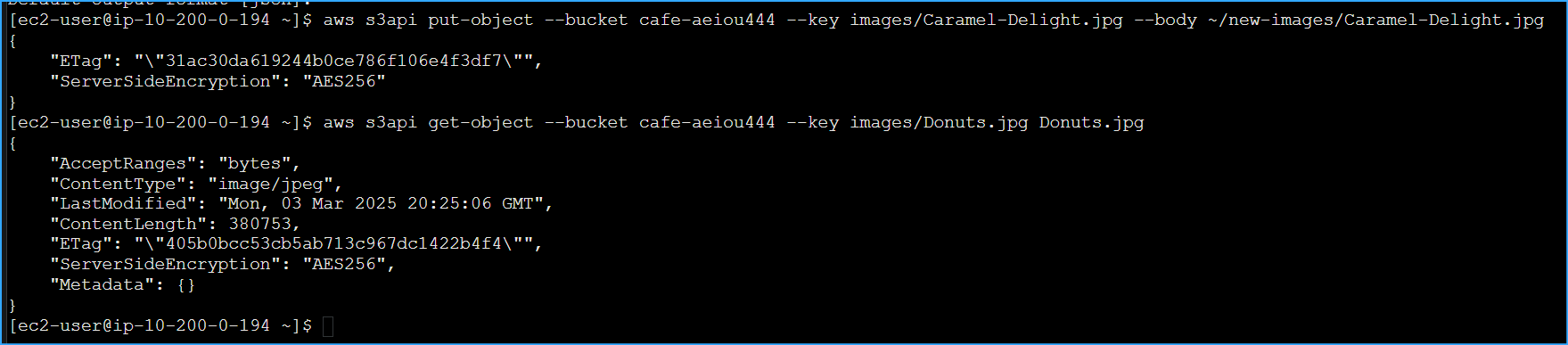

Next, I tested the get operation:

I noticed no email notification was generated for this operation, which was expected since my bucket was configured for notifications only on object creation or deletion.

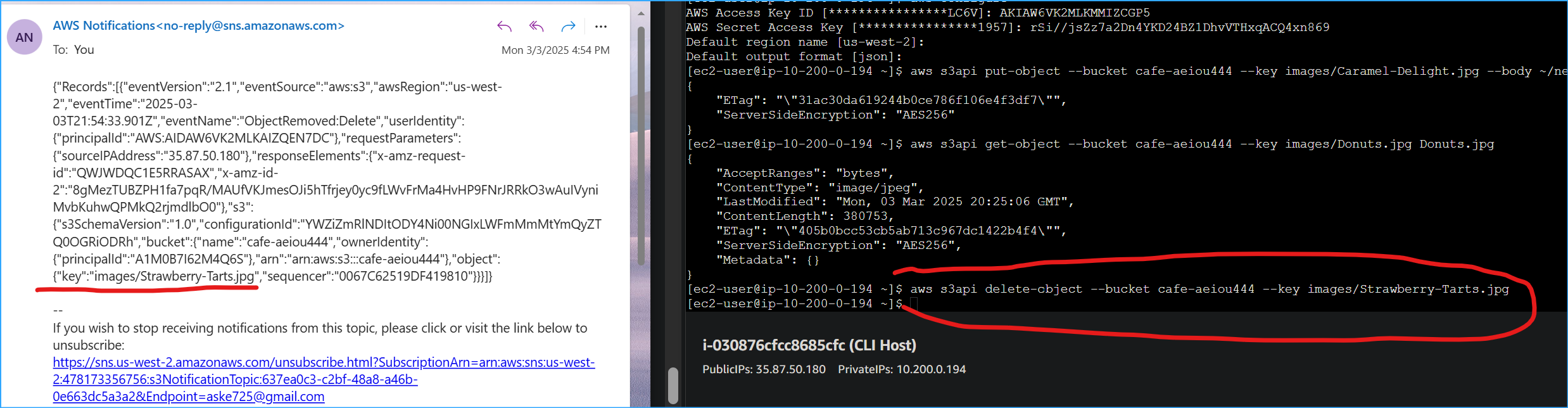

Then I tested the delete operation:

I received another notification message with:

• The eventName value was ObjectRemoved:Delete
• The object key was images/Strawberry-Tarts.jpg

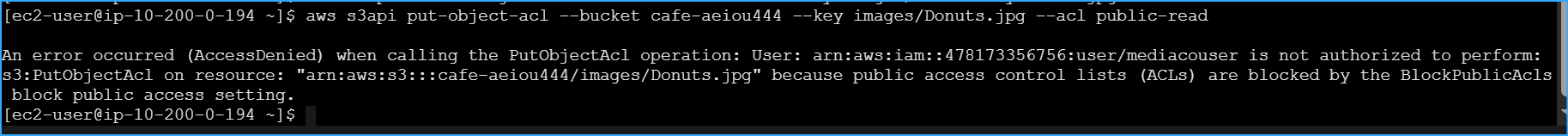

Finally, I tested an unauthorized operation:

The command failed with this error message: "An error occurred (AccessDenied) when calling the PutObjectAcl operation: Access Denied"
